قیمت محصول
توضیحات

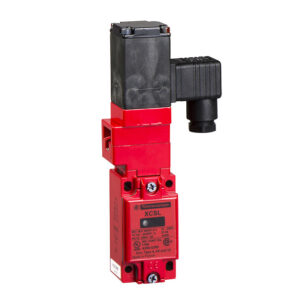

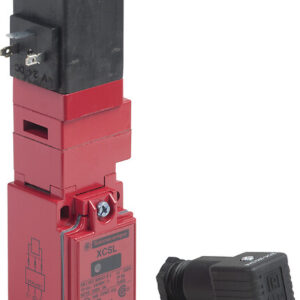

Safety switch, Telemecanique Safety switches XCS, XCSL, AC/DC, 50/60 Hz, key operated turret head
جزئیات محصول
| وزن | 964 گرم |
|---|---|
| ابعاد | 28 × 6.2 × 5.2 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Safety switch |
| Component name |
XCSL |
| Head type |
Key operated turret head |
| Supply voltage type |
AC/DC |
| Supply frequency |
50/60 Hz |
| Positive opening |
With NC contact |
| Maximum load current |
<= 15 A |
| Protection type |
Overvoltage protection for signalling circuit |
| Operating rate |
10 cyc/mn for maximum durability |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Protective treatment |
TC |
| Electrical shock protection |
Class I conforming to IEC 60536 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
5.2 CENTIMETER |
| Package 1 width |
6.2 CENTIMETER |
| Package 1 length |
28 CENTIMETER |
| Package 1 weight |
964 GRAM |
