قیمت محصول
توضیحات

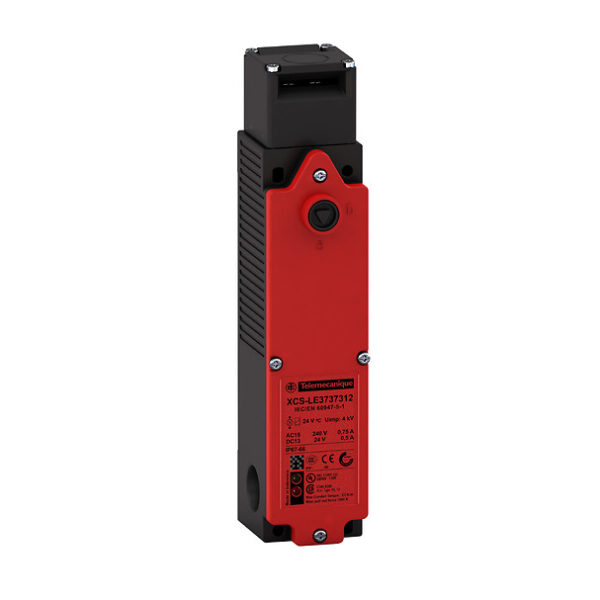

Safety switch, Telemecanique Safety switches XCS, plastic XCSLE, 4 NC, slow break, 3 entries tapped M20, 24 V
جزئیات محصول
| وزن | 630 گرم |
|---|---|
| ابعاد | 7.5 × 23 × 5.7 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Safety switch |
| Component name |
XCSLE |
| Design |
Slim |
| Material |
Plastic |
| Head type |
Key operated turret head |
| Contacts type and compositi |
2 NC |
| Solenoid contacts type and |
2 NC (slow-break ,simultaneous) |
| Cable entry |
3 entries tapped for M20 x 1.5 |
| Electromagnet interlocking |
Locking on de-energisation and unlocking on energisation of solenoid |
| [Us] rated supply voltage |
24 V – 15…10 % |
| Electrical connection |
clamping capacity: 1 x 1.5 mm² flexible or solid cable ,clamping capacity: 2 x 0.5 mm² flexible cables with 13 mm bared ends ,Spring terminal |
| Local signalling |
1 LED (green) for actuator inserted and locked ,1 LED (orange) for actuator withdrawn |
| Signalling circuit voltage |
24 V |
| Contact operation |
simultaneous ,Slow-break |
| Locking options description |
locking by solenoid ,With interlocking |
| Insulation |
Double insulated |
| Positive opening |
With NC contact |
| Supply voltage type |
AC/DC |
| Supply frequency |
50/60 Hz |
| Signalling circuit type |
AC/DC |
| Maximum load current |
<= 15 A |
| Actuator forcible withdrawa |
1400 NEWTON |
| Actuator force for extracti |
20 NEWTON |
| Operating rate |
10 cyc/mn for maximum durability |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 conforming to IEC 61508 |
| Safety reliability data |
B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material |
PA (polyamide) |
| Head material |
PA (polyamide) |
| Standards |
CSA C22.2 No 14UL 508IEC 62061IEC 60947-5-1ISO 13849-1EN 1088/ISO 14119IEC 60204-1 |
| Product certifications |
CSATÜVUL |
| Protective treatment |
TC |
| Vibration resistance |
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection |
Class II conforming to IEC 61140 |
| IP degree of protection |
IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 ,IP67 |
| Unit type of package 1 |
PCE |
| Package 1 height |
5.7 CENTIMETER |
| Package 1 width |
23 CENTIMETER |
| Package 1 length |
7.5 CENTIMETER |
| Package 1 weight |
630 GRAM |
| Unit type of package 2 |
S02 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
5.8 KILOGRAM |
| Unit type of package 3 |
PAL |
| Number of units in package |
128 |
| Package 3 height |
77 CENTIMETER |
| Package 3 width |
80 CENTIMETER |
| Package 3 length |
60 CENTIMETER |
| Package 3 weight |
403.2 KILOGRAM |
