XCSLE3737512
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

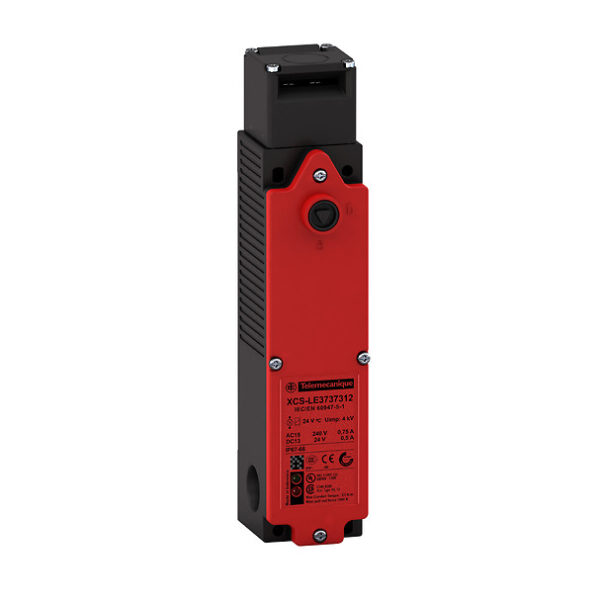

Safety switch, Telemecanique Safety switches XCS, plastic XCSLE, 4NC+2 NO, slow break, 3 entries tapped M20, 24 V
جزئیات محصول
| وزن | 630 گرم |
|---|---|
| ابعاد | 23 × 7.5 × 5.7 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Safety switch |
| Component name |
XCSLE |
| Design |
Slim |
| Material |
Plastic |
| Head type |
Key operated turret head |
| Contacts type and compositi |
2 NC + 1 NO |
| Contact operation |
break before make ,Slow-break |
| Solenoid contacts type and |
2 NC + 1 NO (slow-break ,break before make) |
| Electromagnet interlocking |
Locking on energisation and unlocking on de-energisation of solenoid |
| Cable entry |
3 entries tapped for M20 x 1.5 |
| [Us] rated supply voltage |
24 V – 15…10 % |
| Electrical connection |
clamping capacity: 1 x 1.5 mm² flexible or solid cable ,clamping capacity: 2 x 0.5 mm² flexible cables with 13 mm bared ends ,Spring terminal |
| Locking options description |
locking by solenoid ,With interlocking |
| Local signalling |
1 LED (green) for actuator inserted and locked ,1 LED (orange) for actuator withdrawn |
| Signalling circuit voltage |
24 V |
| Supply voltage type |
AC/DC |
| Supply frequency |
50/60 Hz |
| Positive opening |
With NC contact |
| Maximum load current |
<= 15 A |
| Insulation |
Double insulated |
| Operating rate |
10 cyc/mn for maximum durability |
| Signalling circuit type |
AC/DC |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 conforming to IEC 61508 |
| Body material |
PA (polyamide) |
| Head material |
PA (polyamide) |
| Actuator force for extracti |
20 NEWTON |
| Actuator forcible withdrawa |
1400 NEWTON |
| Safety reliability data |
B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear |
| Protective treatment |
TC |
| Product certifications |
CSATÜVUL |
| Electrical shock protection |
Class II conforming to IEC 61140 |
| Standards |
CSA C22.2 No 14UL 508IEC 62061IEC 60947-5-1ISO 13849-1EN 1088/ISO 14119IEC 60204-1 |
| Vibration resistance |
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
10 gn for 11 ms conforming to IEC 60068-2-27 |
| IP degree of protection |
IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 ,IP67 |
| Unit type of package 1 |
PCE |
| Package 1 height |
5.7 CENTIMETER |
| Package 1 width |
7.5 CENTIMETER |
| Package 1 length |
23 CENTIMETER |
| Package 1 weight |
630 GRAM |
| Unit type of package 2 |
P06 |
| Package 2 height |
70 CENTIMETER |
| Package 2 width |
60 CENTIMETER |
| Package 2 length |
80 CENTIMETER |
| Package 2 weight |
80.64 KILOGRAM |
| Unit type of package 3 |
S02 |
| Number of units in package |
8 |
| Package 3 height |
15 CENTIMETER |
| Package 3 width |
30 CENTIMETER |
| Package 3 length |
40 CENTIMETER |
| Package 3 weight |
5.04 KILOGRAM |
