XCSLF383751M3
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

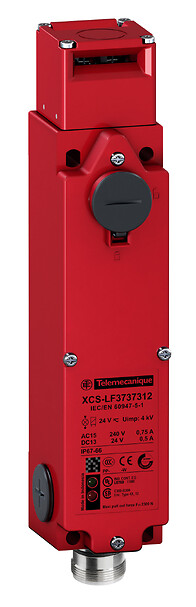

Safety switch, Telemecanique Safety switches XCS, metal key operated solenoid XCSLF, 5NC+1 NO, slow, M23 connector, 24 V
جزئیات محصول
| وزن | 1300 گرم |
|---|---|
| ابعاد | 24.2 × 7.5 × 6 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Safety switch |
| Component name |
XCSLF |
| Design |
Slim |
| Material |
Metal |
| Head type |
Key operated turret head |
| Contacts type and compositi |
3 NC |
| Solenoid contacts type and |
2 NC + 1 NO (slow-break ,break before make) |
| Electromagnet interlocking |
Locking on energisation and unlocking on de-energisation of solenoid |
| [Us] rated supply voltage |
24 V – 15…10 % |
| Electrical connection |
19 pins ,Male connector M23 |
| Local signalling |
1 LED (green) for actuator inserted and locked ,1 LED (orange) for actuator withdrawn |
| Signalling circuit voltage |
24 V |
| Contact operation |
break before make ,Slow-break |
| Locking options description |
locking by solenoid ,With interlocking |
| Positive opening |
With NC contact |
| Supply voltage type |
AC/DC |
| Supply frequency |
50/60 Hz |
| Signalling circuit type |
AC/DC |
| Maximum load current |
<= 15 A |
| Actuator forcible withdrawa |
3000 NEWTON |
| Actuator force for extracti |
20 NEWTON |
| Operating rate |
10 cyc/mn for maximum durability |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 conforming to IEC 61508 |
| Safety reliability data |
B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material |
Zamak |
| Head material |
Zamak |
| Standards |
CSA C22.2 No 14UL 508IEC 62061IEC 60947-5-1ISO 13849-1EN 1088/ISO 14119IEC 60204-1 |
| Product certifications |
CSATÜVUL |
| Protective treatment |
TC |
| Vibration resistance |
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection |
Class I conforming to IEC 61140 |
| IP degree of protection |
IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
6 CENTIMETER |
| Package 1 width |
7.5 CENTIMETER |
| Package 1 length |
24.2 CENTIMETER |
| Package 1 weight |
1.3 KILOGRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
10 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
13.455 KILOGRAM |
