XCSM3702L2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

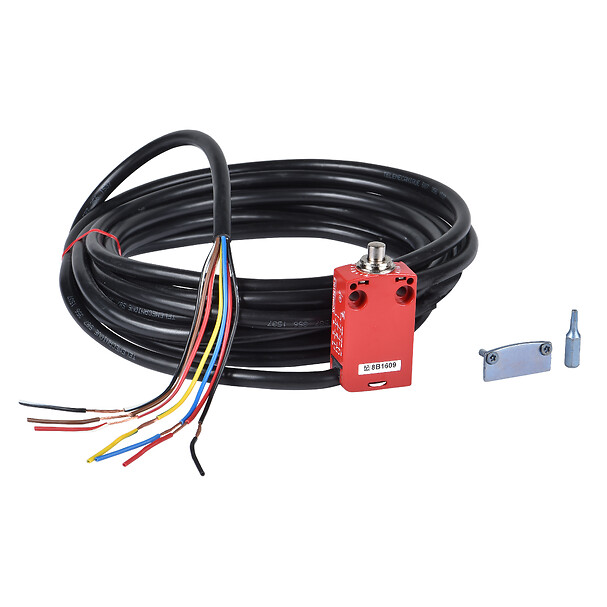

Safety limit switch, Telemecanique Safety switches XCS, XCSM, metal, roller plunger, 2 NC + 1 NO, cable 2 m
جزئیات محصول
| وزن | 287 گرم |
|---|---|
| ابعاد | 19 × 19 × 2 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Safety limit switch |
| Component name |
XCSM |
| Design |
Miniature |
| Material |
Metal |
| Head type |
Plunger head |
| Protection technology |
Plastic protective cover ,secured by 5-lobe socket head safety screw |
| Type of approach |
Lateral approach |
| Type of operator |
Roller plunger |
| Contact operation |
break before make ,Slow-break |
| Contacts type and compositi |
1 NC + 1 NC + 1 NO |
| Cable composition |
7 x 0.5 mm² |
| Electrical connection |
Pre-cabled |
| Positive opening |
With NC contact |
| Switch actuation |
By 30° cam |
| Fixing mode |
By the body |
| Contact code designation |
AC-15 (Ue = 240 V ,B300 ,DC-13 (Ue = 250 V ,Ie = 0.1 A) conforming to IEC 60947-5-1 ,Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A ,Ie = 1.5 A) conforming to IEC 60947-5-1 ,Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A ,R300 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Repeat accuracy |
0.05 mm on the tripping points |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Body material |
Zamak |
| Head material |
Zamak |
| Safety reliability data |
B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Protective treatment |
TC |
| Product certifications |
CSAUL |
| Electrical shock protection |
Class I ,Class I conforming to IEC 61140 |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1EN 1088IEC 60204-1 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
25 gn for 18 ms conforming to IEC 60068-2-27 |
| IK degree of protection |
IK06 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 ,IP67 conforming to IEC 60529 ,IP68 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2 CENTIMETER |
| Package 1 width |
19 CENTIMETER |
| Package 1 length |
19 CENTIMETER |
| Package 1 weight |
287 GRAM |
| Unit type of package 2 |
S03 |
| Package 2 height |
30 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
10.795 KILOGRAM |
| Unit type of package 3 |
P06 |
| Number of units in package |
280 |
| Package 3 height |
105 CENTIMETER |
| Package 3 width |
60 CENTIMETER |
| Package 3 length |
80 CENTIMETER |
| Package 3 weight |
105.36 KILOGRAM |
