XCSMP59L2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

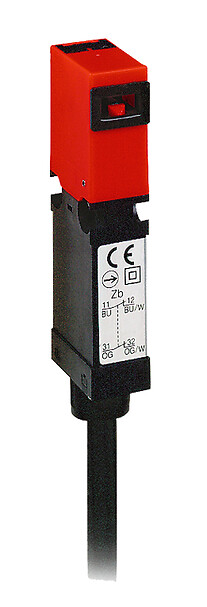

Safety switch, Telemecanique Safety switches XCS, plastic XCSMP, 1 NC + 1 NO, slow break, pre cabled 2 m
جزئیات محصول
| وزن | 220 گرم |
|---|---|
| ابعاد | 20.5 × 21 × 2 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Safety switch |
| Component name |
XCSMP |
| Design |
Miniature |
| Material |
Plastic |
| Head type |
Key operated fixed head |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
break before make ,Slow-break |
| Electrical connection |
Pre-cabled |
| Locking options description |
Without locking of actuator |
| Insulation |
Double insulated |
| Cable composition |
4 x 0.5 mm² |
| Positive opening |
With NC contact |
| Actuator force for extracti |
8 NEWTON |
| Operating rate |
20 cyc/mn for maximum durability |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data |
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material |
PA (polyamide) |
| Head material |
PA (polyamide) |
| Standards |
CSA C22.2 No 14ISO 12100UL 508IEC 60947-5-1EN 1088/ISO 14119IEC 60204-1 |
| Product certifications |
CSAULcUL |
| Protective treatment |
TC |
| Vibration resistance |
6 gn (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection |
Class II conforming to IEC 61140 |
| IP degree of protection |
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2 CENTIMETER |
| Package 1 width |
21 CENTIMETER |
| Package 1 length |
20.5 CENTIMETER |
| Package 1 weight |
220 GRAM |
| Unit type of package 2 |
P06 |
| Package 2 height |
80 CENTIMETER |
| Package 2 width |
80 CENTIMETER |
| Package 2 length |
60 CENTIMETER |
| Package 2 weight |
49.404 KILOGRAM |
| Unit type of package 3 |
S03 |
| Number of units in package |
20 |
| Package 3 height |
30 CENTIMETER |
| Package 3 width |
30 CENTIMETER |
| Package 3 length |
40 CENTIMETER |
| Package 3 weight |
5.126 KILOGRAM |
