XCSP3910N12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

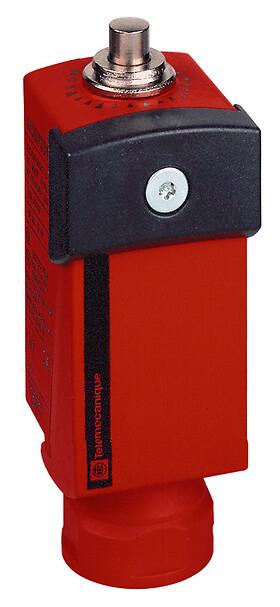

Safety limit switch, Telemecanique Safety switches XCS, plastic, steel plunger, 2NC+1 NO, 1entry tapped 1/2″ NPT
جزئیات محصول
| وزن | 118 گرم |
|---|---|
| ابعاد | 4.3 × 3.3 × 10.5 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Safety limit switch |
| Component name |
XCSP |
| Design |
compact |
| Material |
Plastic |
| Head type |
Plunger head |
| Protection technology |
Plastic protective cover ,secured by 5-lobe socket head safety screw |
| Type of approach |
On end approach |
| Type of operator |
Metal end plunger |
| Contact operation |
Snap action |
| Contacts type and compositi |
1 NC + 1 NC + 1 NO |
| Cable entry |
1 entry tapped for 1/2" NPT |
| Electrical connection |
Terminal |
| Clamping connection capacit |
1 x 0.34…2 x 0.75 mm² |
| Positive opening |
With NC contact |
| Contact code designation |
AC-15 (Ue = 240 V ,B300 ,DC-13 (Ue = 250 V ,Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A ,Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A ,R300 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Repeat accuracy |
0.1 mm on tripping points ,1 million operating cycles for head with end plunger |
| Enclosure material |
Plastic |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Body material |
Plastic |
| Head material |
Zamak |
| Safety reliability data |
B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Protective treatment |
TC |
| Product certifications |
CSAUL |
| Electrical shock protection |
Class II |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1EN 1088/ISO 14119IEC 60204-1 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| IK degree of protection |
IK04 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 ,IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
10.5 CENTIMETER |
| Package 1 width |
3.3 CENTIMETER |
| Package 1 length |
4.3 CENTIMETER |
| Package 1 weight |
118 GRAM |
