XCSPR553
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

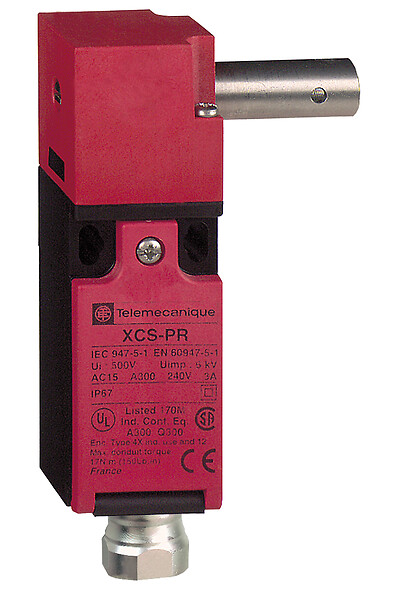

Guard switch, Telemecanique Safety switches XCS, XCSPR, spindle 30 mm, 1NC+1 NO -1/2″NPT
جزئیات محصول
| وزن | 120 گرم |
|---|---|
| ابعاد | 6.6 × 10.5 × 4.5 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Guard switch |
| Component name |
XCSPR |
| Material |
Plastic |
| Head type |
Turret head rotary axis |
| Insulation |
Double insulated |
| Type of operator |
Spindle 30 mm |
| Electrical connection |
Terminal |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
break before make ,Slow-break |
| Clamping connection capacit |
1 x 0.5…2 x 1.5 mm² with or without cable end |
| Cable entry |
1 entry tapped for 1/2" NPT |
| Positive opening |
With NC contact |
| Contact code designation |
A300 ,AC-15 (Ue = 120 V ,AC-15 (Ue = 240 V ,DC-13 (Ue = 125 V ,DC-13 (Ue = 250 V ,Ie = 0.27 A) conforming to IEC 60947-5-1 ,Ie = 0.55 A) conforming to IEC 60947-5-1 ,Ie = 3 A) conforming to IEC 60947-5-1 ,Ie = 6 A) conforming to IEC 60947-5-1 ,Q300 |
| Resistance across terminals |
30 mOhm conforming to IEC 60947-5-4 |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data |
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Enclosure material |
Polyamide PA66 fibre glass impregnated |
| Lever material |
Stainless steel |
| Standards |
CSA C22.2 No 14IEC 60947-5-4ISO 12100UL 508IEC 60947-5-1EN 1088/ISO 14119IEC 60204-1 |
| Product certifications |
CSABGUL |
| Protective treatment |
THTC |
| Vibration resistance |
50 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection |
Class II conforming to IEC 61140 |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
4.5 CENTIMETER |
| Package 1 width |
10.5 CENTIMETER |
| Package 1 length |
6.6 CENTIMETER |
| Package 1 weight |
120 GRAM |
