توضیحات

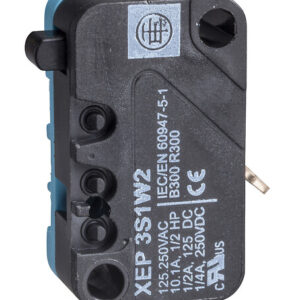

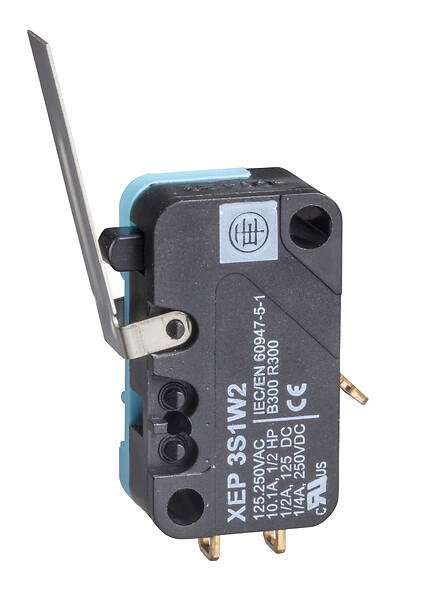

Microswitch, Limit switches XC Standard, miniature limit switch, flat lever, 4.8 mm cable clip tags
جزئیات محصول
| وزن | 6 گرم |
|---|---|
| ابعاد | 14 × 7 × 1.5 سانتیمتر |
| Range of product |
OsiSense XC |
| Series name |
Special format |
| Product or component type |
Microswitch |
| Device short name |
XEP3 |
| Detector design |
DIN 41635 A format ,Miniature |
| Head type |
Plunger head |
| Lever material |
Stainless steel |
| Lever fixing position |
B |
| Movement of operating head |
Linear |
| Type of operator |
Flat lever |
| Switch actuation |
Horizontal |
| Type of approach |
Lateral approach |
| Electrical connection |
4.8 mm cable clip tags |
| Contacts type and compositi |
1 C/O standard |
| Contact operation |
Snap action |
| Contacts material |
AgNi |
| Body material |
Polyester |
| Contact code designation |
AC-15 (Ue = 240 V ,B300 ,DC-13 (Ue = 250 V ,Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A ,Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A ,R300 |
| Terminals description ISO n |
(1-2-4)OC |
| IP degree of protection |
IP40 |
| Marking |
CE |
| Standards |
IEC 61058UL 1054cURusIEC 60947-5-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
1.5 CENTIMETER |
| Package 1 width |
7 CENTIMETER |
| Package 1 length |
14 CENTIMETER |
| Package 1 weight |
6 GRAM |
| Unit type of package 2 |
BB1 |
| Package 2 height |
1.5 CENTIMETER |
| Package 2 width |
7 CENTIMETER |
| Package 2 length |
14 CENTIMETER |
| Package 2 weight |
60 GRAM |
| Unit type of package 3 |
S01 |
| Number of units in package |
200 |
| Package 3 height |
15 CENTIMETER |
| Package 3 width |
15 CENTIMETER |
| Package 3 length |
40 CENTIMETER |
| Package 3 weight |
1.33 KILOGRAM |
