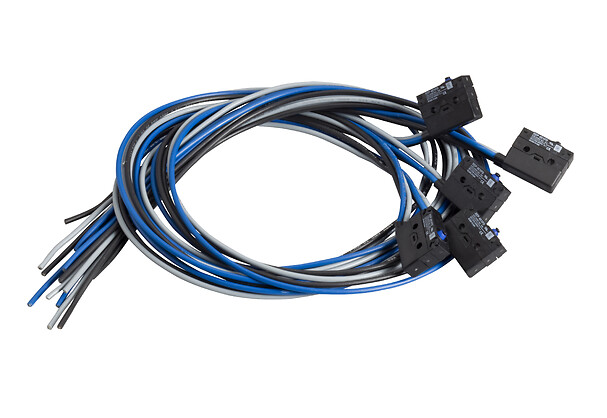

Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, cable length 0.5 m
جزئیات محصول
| وزن | 16 گرم |
|---|---|
| ابعاد | 10 × 8 × 1 سانتیمتر |
| Range of product |
OsiSense XC |
| Series name |
Special format |
| Product or component type |
Microswitch |
| Device short name |
XEP4 |
| Detector design |
DIN 41635 B format ,Sealed ,Subminiature |
| Head type |
Plunger head |
| Movement of operating head |
Linear |
| Switch actuation |
On end |
| Type of operator |
Plunger |
| Type of approach |
Vertical approach |
| Electrical connection |
Pre-cabled |
| Cable composition |
3 x 0.5 mm² |
| Contacts type and compositi |
1 C/O standard |
| Contact operation |
Snap action |
| Contacts material |
AgCdO |
| Body material |
Polyester |
| Contact code designation |
AC-15 (Ue = 240 V ,B300 ,DC-13 (Ue = 250 V ,Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A ,Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A ,R300 |
| Terminals description ISO n |
(1-2-4)OC |
| IP degree of protection |
IP67 |
| Marking |
CE |
| Standards |
IEC 61058UL 1054cURusIEC 60947-5-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
1 CENTIMETER |
| Package 1 width |
8 CENTIMETER |
| Package 1 length |
10 CENTIMETER |
| Package 1 weight |
16 GRAM |
| Unit type of package 2 |
BB1 |
| Package 2 height |
3 CENTIMETER |
| Package 2 width |
8 CENTIMETER |
| Package 2 length |
10 CENTIMETER |
| Package 2 weight |
81 GRAM |
| Unit type of package 3 |
S01 |
| Number of units in package |
100 |
| Package 3 height |
15 CENTIMETER |
| Package 3 width |
15 CENTIMETER |
| Package 3 length |
40 CENTIMETER |
| Package 3 weight |
1.845 KILOGRAM |
