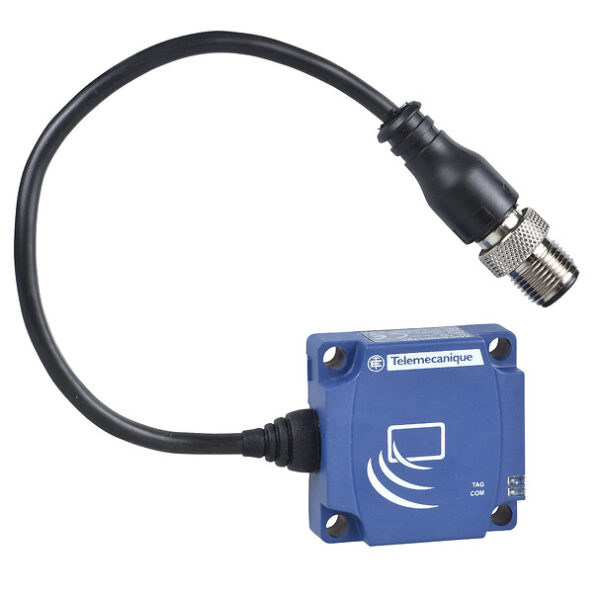

Compact smart antenna, Radio frequency identification XG, RFID 13.56 MHz, flat form 40x40x15, M12, cable 0.2 m
جزئیات محصول
| وزن | 82 گرم |
|---|---|
| ابعاد | 9.5 × 4 × 6.5 سانتیمتر |
| Range of product |
Telemecanique Radio frequency identification XG |
| Product or component type |
Compact smart antenna |
| RFID compact station name |
XGCS |
| Design |
Flat form 40 x 40 x 15 |
| Electrical connection |
5 pin(s)male remote connector M12 ,shielded cable cable 0.2 m |
| Outer dimension |
40 x 40 x 15 mm |
| Product compatibility |
Desfire)RFID microchip INSIDE (micropass)RFID microchip Microelectronic (EM4135) ,RFID microchip Texas (Tag-it HFI)RFID microchip Fujitsu (MB89R118 – MB89R119)RFID microchip STM (CRIX4K)RFID microchip NXP (SL2 ,SL1 ,Std 1K/4K ,Ultralight |
| [Us] rated supply voltage |
24 V DC conforming to Protective Extra Low Voltage |
| Transmission rate |
9600 bauds…115200 bauds (automatic detection) |
| Communication port protocol |
Modbus RTUUni-Telway |
| Communication port support |
RS485 |
| Associated tag type |
ISO 14443 standard tagsautomatic detection of the type of tagsISO 15693 standard tags |
| Current consumption |
< 60 mA |
| Status LED |
Communication network: 1 LED (dual colour) ,RFID communication: 1 LED (dual colour) |
| Tightening torque |
< 1 N.m |
| Marking |
CE |
| Product certifications |
FCC ,UL |
| Standards |
ETSI EN 301 489-3ETSI EN 301 489-1ETSI EN 300 330-1ETSI EN 300 330-2 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Vibration resistance |
2 mm (f= 5-29.5 Hz) conforming to IEC 60068-2-6 ,7 gn (f= 29.5-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27 |
| IK degree of protection |
IK02 conforming to IEC 62262 |
| Electromagnetic compatibili |
1 kV ,1.2/50 µs shock waves immunity test: ,10 kV ,10 V ,10 V/m ,2 kV ,3 ,30 A/m ,4 ,6 kV ,8 kV ,conducted RF disturbances: ,conforming to IEC 61000-4-2 ,conforming to IEC 61000-4-3 ,conforming to IEC 61000-4-4 ,conforming to IEC 61000-4-5 ,conforming to IEC 61000-4-6 ,conforming to IEC 61000-4-8 ,electrical fast transient/burst immunity test: (power ports) ,electrical fast transient/burst immunity test: (signal ports) ,electrostatic discharge immunity test: (air discharge) ,Electrostatic discharge immunity test: (contact discharge) ,magnetic field at power frequency: ,susceptibility to electromagnetic fields: |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
6.5 CENTIMETER |
| Package 1 width |
4 CENTIMETER |
| Package 1 length |
9.5 CENTIMETER |
| Package 1 weight |
82 GRAM |
