XGCS491B201
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

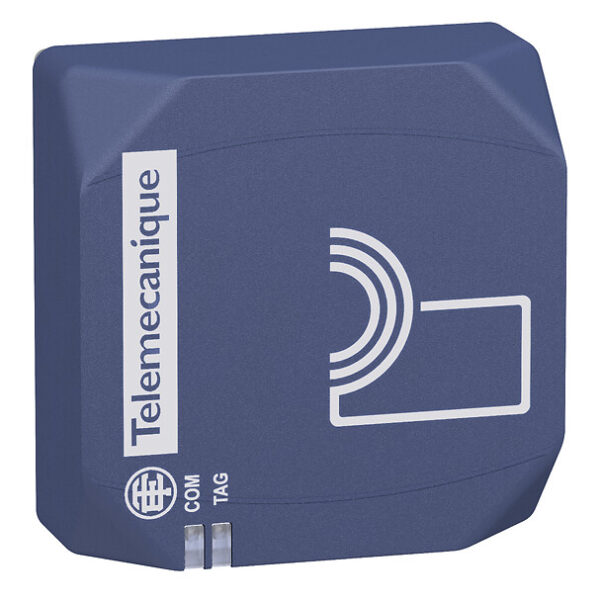

Panel mounting smart antenna, Radio frequency identification XG, Standalone
جزئیات محصول
| وزن | 76 گرم |
|---|---|
| ابعاد | 8.6 × 6.6 × 4.8 سانتیمتر |
| Range of product |
Telemecanique Radio frequency identification XG |
| Product or component type |
Panel mounting smart antenna |
| RFID compact station name |
XGCS |
| Design |
Diameter 22 mounting |
| Electrical connection |
5 pin(s)1 male connector M12 |
| Outer dimension |
40 x 40 x 40 mm |
| Product compatibility |
RFID microchip Texas (Tag-it HFI)RFID microchip Fujitsu (MB89R118 – MB89R119)RFID NXP Classic (1K/4K) |
| [Us] rated supply voltage |
24 V DC conforming to Protective Extra Low Voltage |
| Operating mode |
Standalone |
| Type of output signal |
Discrete |
| Discrete output function |
1 NO |
| Discrete output type |
PNP |
| Associated tag type |
ISO 14443 standard tagsautomatic detection of the type of tagsISO 15693 standard tags |
| Current consumption |
< 60 mA |
| Switching capacity in mA |
300 mA (overload and short-circuit protection) |
| Status LED |
output state: 1 LED (dual colour) ,RFID communication: 1 LED (dual colour) |
| Tightening torque |
< 2.2 N.m |
| Marking |
CE |
| Product certifications |
CE |
| Standards |
ETSI EN 301 489-3ETSI EN 301 489-1ETSI EN 300 330-1ETSI EN 300 330-2 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Vibration resistance |
2 mm (f= 5-29.5 Hz) conforming to IEC 60068-2-6 ,7 gn (f= 29.5-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27 |
| IK degree of protection |
IK02 conforming to IEC 62262 |
| Electromagnetic compatibili |
1 kV ,1.2/50 µs shock waves immunity test: ,10 kV ,10 V ,10 V/m ,2 kV ,3 ,30 A/m ,4 ,6 kV ,8 kV ,conducted RF disturbances: ,conforming to IEC 61000-4-2 ,conforming to IEC 61000-4-3 ,conforming to IEC 61000-4-4 ,conforming to IEC 61000-4-5 ,conforming to IEC 61000-4-6 ,conforming to IEC 61000-4-8 ,electrical fast transient/burst immunity test: (power ports) ,electrical fast transient/burst immunity test: (signal ports) ,electrostatic discharge immunity test: (air discharge) ,Electrostatic discharge immunity test: (contact discharge) ,magnetic field at power frequency: ,susceptibility to electromagnetic fields: |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
4.8 CENTIMETER |
| Package 1 width |
6.6 CENTIMETER |
