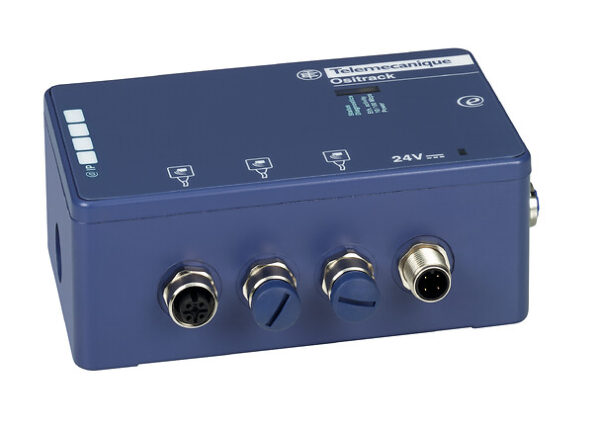

XGSZ33ETH
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Connection Ethernet box, Radio frequency identification XG, Modbus TCP/IP, 3 channels for XGCS smart antennas
جزئیات محصول
| وزن | 914 گرم |
|---|---|
| ابعاد | 24.2 × 17.2 × 6 سانتیمتر |
| Range of product | Telemecanique Radio frequency identification XG |
| Product or component type | Connection Ethernet box |
| Device short name | XGSZ33 |
| Communication port protocol | Modbus TCP/IP |
| Electrical connection | 1 connector M12 4 pins for Ethernet network (D coding), 1 male connector M12 4 pins for power supply (A coding), 3 female connectors M12 5 pins for stations XGCS (A coding) |
| [Us] rated supply voltage | 24 V DC conforming to Protective Extra Low Voltage |
| Bus conformity class | A10 |
| Power consumption in W | 1 WATT |
| Status LED | collision detection: 1 LED (red), diagnostics: 1 LED (yellow), Ethernet network activity: 1 LED (green), fault: 1 LED (red), supply on: 1 LED (green) |
| Communication service | Modbus messaging |
| Register words | 1…123 words |
| Transmission support medium | Ethernet cable |
| Port Ethernet | 100BASE-TX10BASE-T |
| Transmission rate | 10…100 Mbit/s |
| Marking | CE |
| Product certifications | UL |
| IP degree of protection | IP65 |
| EMC filter | Class B EMC filter conforming to EN 55022, Level 3 EMC filter conforming to IEC 61000 |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 6 CENTIMETER |
