XGSZ33PDP
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

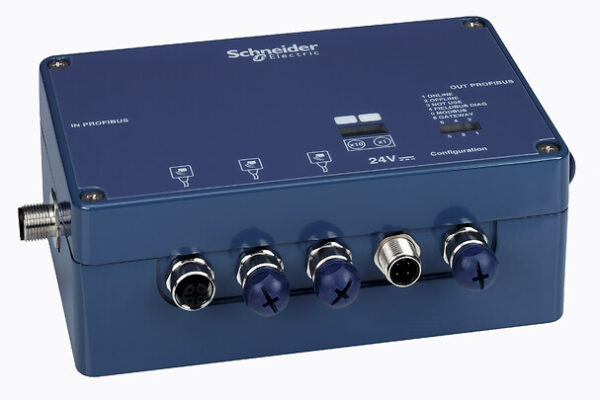

Connection Profibus box, Radio frequency identification XG, DP, 3 channels for XGCS smart antennas
جزئیات محصول
| وزن | 1005 گرم |
|---|---|
| ابعاد | 24 × 16.2 × 7.2 سانتیمتر |
| Range of product | Telemecanique Radio frequency identification XG |
| Product or component type | Connection Profibus box |
| Device short name | XGSZ33 |
| Communication port protocol | Profibus DP V1 |
| Electrical connection | 1 female connector M12 4 pins for PC connection (A encoding), 1 female connector M12 5 pins for network output (B encoding), 1 male connector M12 4 pins for power supply (A encoding), 1 male connector M12 5 pins for network input (B encoding), 3 female connectors M12 5 pins for stations XGCS (A encoding) |
| [Us] rated supply voltage | 24 V DC conforming to Protective Extra Low Voltage |
| Power consumption in W | 2.5 WATT |
| Status LED | communication network: 1 LED (green), Diagnostics: 1 dual color LED (red/green), diagnostics: 1 LED (red), RFID communication: 1 dual color LED (red/green) |
| Communication service | Cyclical variable exchange |
| Register words | 1…49 words |
| Transmission support medium | 2 twisted shielded pairs cable |
| Transmission rate | 9.6 kbit/s…12000 kbit/s |
| Marking | CE |
| Product certifications | Profibus |
| IP degree of protection | IP65 |
| EMC filter | Class B EMC filter conforming to EN 55022, Level 3 EMC filter conforming to IEC 61000 |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 7.2 CENTIMETER |
| Package 1 width | 16.2 CENTIMETER |
| Package 1 length | 24 CENTIMETER |
