XMLA500D2S14
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

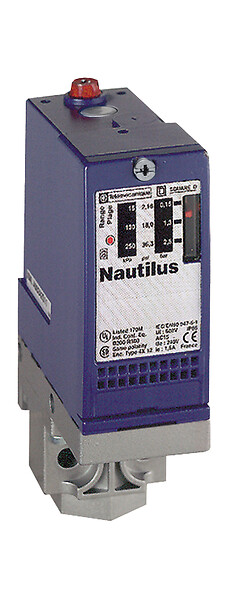

Pressure switch XMLA 500 bar – fixed scale 1 threshold – 1 C/O
جزئیات محصول
| وزن | 757 گرم |
|---|---|
| ابعاد | 8.5 × 12.2 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Pressure sensors XM |
| Product or component type |
Electromechanical pressure sensor |
| Pressure sensor type |
Electromechanical pressure sensor |
| Device short name |
XMLA |
| Controlled fluid |
hydraulic oil (0-160 °C) |
| Fluid connection type |
PT 1/4 (female) |
| Electrical connection |
1 x 0.5…2 x 2.5 mm² ,Screw-clamps terminals |
| AWG gauge |
AWG 20…AWG 14 |
| Cable entry |
Cable gland 7-13 mm |
| Contacts type and compositi |
1 C/O |
| Product specific applicatio |
Not applicable |
| Pressure switch type of ope |
Detection of 1 single threshold |
| Electrical circuit type |
Control circuit |
| Scale type |
Fixed differential |
| Local display |
With |
| Pressure actuator |
Piston |
| Materials in contact with f |
FKM ,SteelPTFEbrassstainless steelFPM |
| Enclosure material |
Zinc alloy |
| Terminal block type |
4 terminals |
| Operating rate |
60 cyc/mn |
| Auxiliary contacts operatio |
Snap action |
| Contacts material |
Silver contacts |
| Resistance across terminals |
25 mOhm conforming to IEC 255-7 category 3 ,25 mOhm conforming to NF C 93-050 method A |
| Setting |
External |
| Standards |
CSA C22.2 No 14CEUL 508IEC 60947-5-1 |
| Product certifications |
CSACCCBVULLROS (Lloyds register of shipping) |
| Protective treatment |
TC standard version |
| Operating position |
Any position |
| Vibration resistance |
4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz) |
| Shock resistance |
50 gn conforming to IEC 60068-2-27 |
| Electrical shock protection |
Class I conforming to IEC 1140 ,Class I conforming to IEC 536 ,class I conforming to NF C 20-030 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
12.2 CENTIMETER |
| Package 1 length |
8.5 CENTIMETER |
| Package 1 weight |
757 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
13 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
10.147 KILOGRAM |
