XMLBL35R2S11
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

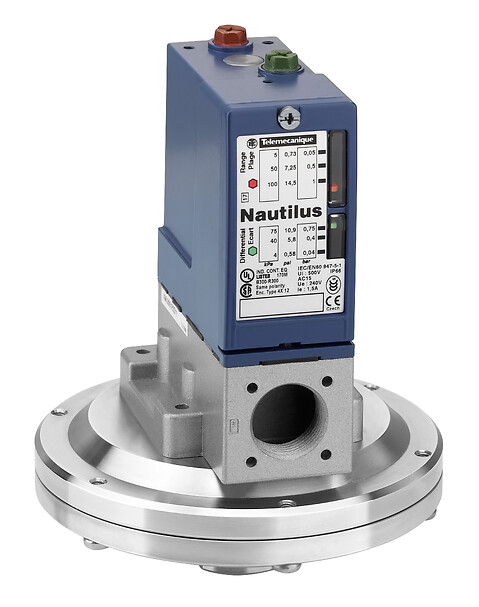

Pressure switch XMLB 350 mbar – adjustable scale 2 thresholds – 1 C/O
جزئیات محصول
| وزن | 2422 گرم |
|---|---|
| ابعاد | 18.5 × 18 × 18.5 سانتیمتر |
| Range of product |
Telemecanique Pressure sensors XM |
| Product or component type |
Electromechanical pressure sensor |
| Pressure sensor type |
Electromechanical pressure sensor |
| Device short name |
XMLB |
| Controlled fluid |
Air (0-160 °C) ,hydraulic oil (0-160 °C) |
| Fluid connection type |
G 1/4 (female) conforming to ISO 228 |
| Electrical connection |
1 connector Pg 13 ,1 x 0.5…2 x 2.5 mm² ,Screw-clamps terminals |
| AWG gauge |
AWG 20…AWG 14 |
| Cable entry |
Cable gland 9-13 mm |
| Contacts type and compositi |
1 C/O |
| Product specific applicatio |
Not applicable |
| Pressure switch type of ope |
Regulation between 2 thresholds |
| Electrical circuit type |
Control circuit |
| Scale type |
Adjustable differential |
| Local display |
With |
| Pressure actuator |
Diaphragm |
| Materials in contact with f |
304L stainless steelsteelFPM ,FKM |
| Enclosure material |
Zinc alloy |
| Terminal block type |
4 terminals |
| Operating rate |
120 cyc/mn |
| Auxiliary contacts operatio |
Snap action |
| Contacts material |
Silver contacts |
| Resistance across terminals |
25 mOhm conforming to IEC 255-7 category 3 ,25 mOhm conforming to NF C 93-050 method A |
| Setting |
External |
| Standards |
CSA C22.2 No 14CEUL 508IEC 60947-5-1 |
| Product certifications |
CSACCCBVULLROS (Lloyds register of shipping) |
| Protective treatment |
TC standard version |
| Operating position |
Any position |
| Vibration resistance |
2 gn conforming to IEC 60068-2-6 (f = 30-500 Hz) |
| Shock resistance |
30 gn conforming to IEC 60068-2-27 |
| Electrical shock protection |
Class I conforming to IEC 1140 ,Class I conforming to IEC 536 ,class I conforming to NF C 20-030 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
18.5 CENTIMETER |
| Package 1 width |
18 CENTIMETER |
| Package 1 length |
18.5 CENTIMETER |
| Package 1 weight |
2.422 KILOGRAM |
| Unit type of package 2 |
S04 |
| Number of units in package |
4 |
| Package 2 height |
30 CENTIMETER |
| Package 2 width |
40 CENTIMETER |
| Package 2 length |
60 CENTIMETER |
| Package 2 weight |
10.554 KILOGRAM |
