قیمت محصول
توضیحات

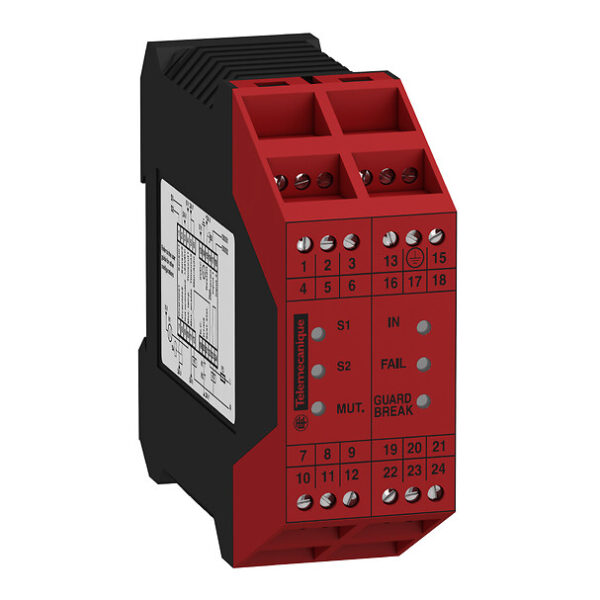

Preventa safety module, Preventa Safety automation, XPSLC, Monitoring mute function light curtain, type2, type4
جزئیات محصول
| وزن | 296 گرم |
|---|---|
| ابعاد | 15.7 × 13.5 × 6 سانتیمتر |
| Range of product |
Telemecanique Safety light curtains XUSL |
| Product or component type |
Preventa safety module |
| Safety module name |
XPSLCM |
| Safety module application |
For the muting function of type 2 and type 4 safety light curtains monitored |
| Function of module |
Muting |
| Safety level |
can reach category 4 with the appropriate control system and correctly wired conforming to ISO 13849-1 ,Can reach PL = e with the appropriate control system and correctly wired conforming to ISO 13849-1 ,can reach SILCL 3 with the appropriate control system and correctly wired conforming to IEC 62061 |
| Safety reliability data |
B10d = 800000 conforming to ISO 13849-1 ,DC = 96.2…98.9 % conforming to ISO 13849-1 ,MTTFd = 26…100 years conforming to ISO 13849-1 ,PFHd = 6.42E-9…5.03E-8 1/h conforming to IEC 62061 |
| Synchronisation time betwee |
– |
| Connections - terminals |
Screw terminal |
| Output type |
– |
| Number of additional circui |
– |
| [Us] rated supply voltage |
24 V DC – 20…20 % |
| Power consumption in W |
5 WATT |
| Number of controlled device |
– |
| Input compatibility |
– |
| Response time on input open |
20 MILLISECOND |
| Local signalling |
6 LEDs |
| Mounting support |
35 mm symmetrical DIN rail |
| Standards |
IEC 62061ISO 13849-1 |
| Product certifications |
TÜVcULus |
| IP degree of protection |
IP2X conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
6 CENTIMETER |
| Package 1 width |
13.5 CENTIMETER |
| Package 1 length |
15.7 CENTIMETER |
| Package 1 weight |
296 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
8 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.685 KILOGRAM |
