XS1M12AB120
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

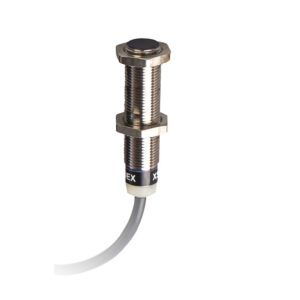

Inductive proximity sensors XS, inductive sensor XS1 M12, L50mm, brass, Sn2mm, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 85 گرم |
|---|---|
| ابعاد | 11.8 × 11.2 × 4.4 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Sensor design | Cylindrical M12 |
| Size | 54 mm |
| Body type | Fixed |
| Type of output signal | Analogue |
| Wiring technique | 2-wire |
| Discrete output function | 1 NC |
| Detector flush mounting acc | Flush mountable |
| Material | Metal |
| Analogue output range | 4…20 mA |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12…24 V DC |
| Output circuit type | DC |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M12 x 1 |
| Front material | PPS |
| Sensing range | > 0…2.5 mm |
| Linearity error | +/- 2 mA |
| Repeat accuracy | <= 3% of Sr |
| Cable composition | 3 x 0.34 mm² |
| Wire insulation material | PVC |
| Switching frequency | <= 1500 Hz |
| Output current drift | 10 PERCENTAGE |
| Current consumption | 4 mA no-load |
| Marking | CE |
| Product certifications | CSAUL |
| Unit type of package 1 | PCE |
| Package 1 height | 4.4 CENTIMETER |
| Package 1 width | 11.2 CENTIMETER |
| Package 1 length | 11.8 CENTIMETER |
| Package 1 weight | 85 GRAM |
| Unit type of package 2 | S02 |
| Number of units in package | 22 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.175 KILOGRAM |
