XS1N30PC410L1TF
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

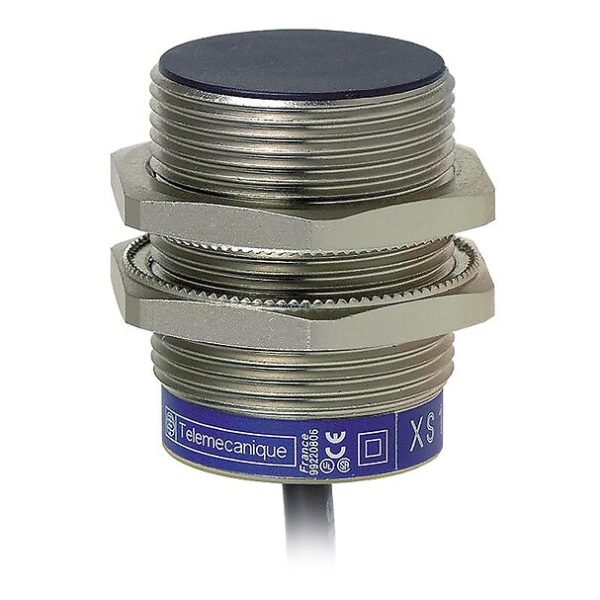

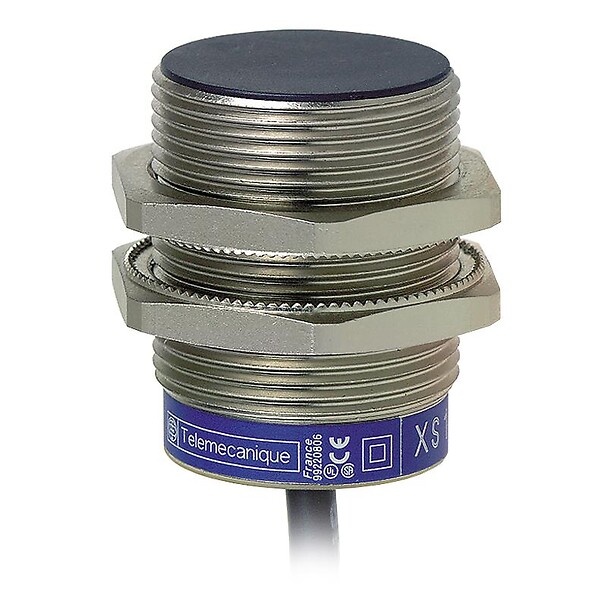

Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m
جزئیات محصول
| وزن | 320 گرم |
|---|---|
| ابعاد | 14.8 × 8 × 8 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS1 |
| Device application |
Mobile equipment |
| Sensor design |
Cylindrical M30 |
| Size |
44 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
4-wire |
| Discrete output function |
1 NO + 1 NC |
| Detector flush mounting acc |
Flush mountable |
| Discrete output type |
PNP |
| Material |
Metal |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Output circuit type |
DC |
| Switching capacity in mA |
<= 200 mA with overload and short-circuit protection |
| IP degree of protection |
IP65 ,IP68 conforming to IEC 60529 |
| Enclosure material |
Nickel plated brass |
| Detection face |
Frontal |
| Thread type |
M30 x 1.5 |
| Front material |
PPS |
| Sensing range |
8…15 mm |
| Differential travel |
1…15 % of Sr |
| Cable composition |
4 x 0.22 mm² |
| Status LED |
Output state: 1 LED (yellow) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 1000 Hz |
| Voltage drop |
<2 V (closed) |
| Current consumption |
0…10 mA no-load |
| Delay first up |
5 MILLISECOND |
| Delay response |
0.3 MILLISECOND |
| Marking |
CE |
| Delay recovery |
0.7 MILLISECOND |
| Product certifications |
CSAULE2 |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
8 CENTIMETER |
| Package 1 width |
8 CENTIMETER |
| Package 1 length |
14.8 CENTIMETER |
| Package 1 weight |
320 GRAM |
