وزن	350 گرم
ابعاد	13 × 9.6 × 6 سانتیمتر
Range of product	Telemecanique Inductive proximity sensors XS
Series name	General purpose
Sensor type	Inductive proximity sensor
Sensor name	XS2
Sensor design	Cylindrical M12
Size	44 mm
Body type	Fixed
Type of output signal	Discrete
Wiring technique	3-wire
Discrete output function	1 NO
Detector flush mounting acc	Non flush mountable
Discrete output type	NPN
Material	Metal
Electrical connection	Cable
[Us] rated supply voltage	12…24 V DC with reverse polarity protection
Output circuit type	DC
Switching capacity in mA	<= 200 mA with overload and short-circuit protection
IP degree of protection	IP67 conforming to IEC 60529
Enclosure material	Nickel plated brass
ISO thread	M12 x 1
Detection face	Frontal
Front material	PBT
Sensing range	> 2.5…4 mm
Differential travel	1…15 % of Sr
Cable composition	3 x 0.14 mm²
Status LED	Output state: 1 LED (yellow)
Wire insulation material	PVC
Switching frequency	<= 1200 Hz
Voltage drop	<2 V (closed)
Current consumption	<= 10 mA no-load
Delay first up	15 MILLISECOND
Delay response	0.15 MILLISECOND
Marking	CE
Delay recovery	0.4 MILLISECOND
Product certifications	CSAUL
Vibration resistance	25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package	1
Package 1 height	6 CENTIMETER
Package 1 width	9.6 CENTIMETER
Package 1 length	13 CENTIMETER
Package 1 weight	0.35 KILOGRAM

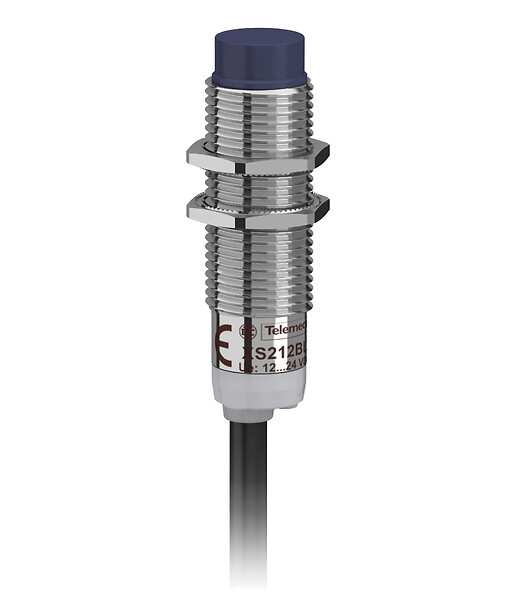

XS212BLNAL7
