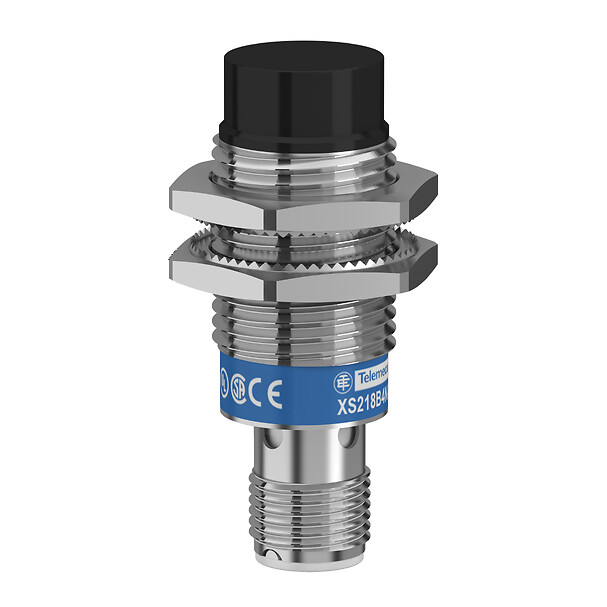

XS218B4PBM12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Inductive proximity sensors XS, inductive sensor XS2 M18, L51mm, brass, Sn16mm, 12…24 VDC, M12
جزئیات محصول
| وزن | 56 گرم |
|---|---|
| ابعاد | 9.5 × 4.1 × 6.5 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS2 |
| Device application |
Mobile equipment |
| Sensor design |
Cylindrical M18 |
| Size |
51 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NC |
| Detector flush mounting acc |
Non flush mountable |
| Discrete output type |
PNP |
| Material |
Metal |
| Electrical connection |
4 pins ,Male connector M12 |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Output circuit type |
DC |
| Switching capacity in mA |
<= 200 mA with overload and short-circuit protection |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to DIN 40050 ,IP69K |
| Enclosure material |
Nickel plated brass |
| Detection face |
Frontal |
| Thread type |
M18 x 1 |
| Front material |
PPS |
| Sensing range |
> 15…40 mm |
| Differential travel |
1…15 % of Sr |
| Status LED |
Output state: 1 LED (yellow) |
| Switching frequency |
<= 1000 Hz |
| Voltage drop |
<2 V (closed) |
| Current consumption |
<= 10 mA no-load |
| Delay first up |
15 MILLISECOND |
| Delay response |
0.3 MILLISECOND |
| Marking |
CE |
| Delay recovery |
0.7 MILLISECOND |
| Product certifications |
CSAULE2 |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
6.5 CENTIMETER |
| Package 1 width |
4.1 CENTIMETER |
| Package 1 length |
9.5 CENTIMETER |
| Package 1 weight |
56 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
22 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.557 KILOGRAM |
