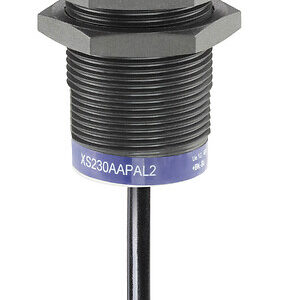

Inductive proximity sensors XS, inductive sensor XS2 M30, L70mm, PPS, Sn22mm, 24…240VAC/DC, 1/2″
جزئیات محصول
| وزن | 90 گرم |
|---|---|
| ابعاد | 9.5 × 6.5 × 4.5 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS2 |
| Device application |
Food and beverage |
| Sensor design |
Cylindrical M30 |
| Size |
70 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO |
| Detector flush mounting acc |
Non flush mountable |
| Material |
Plastic |
| Electrical connection |
3 pins ,Male connector 1/2"20 UNF |
| [Us] rated supply voltage |
24…240 V AC 50/60 Hz ,24…240 V DC |
| Output circuit type |
AC/DC |
| Switching capacity in mA |
5…200 mA DC ,5…300 mA AC |
| IP degree of protection |
IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Enclosure material |
PPS |
| Detection face |
Frontal |
| Thread type |
M30 x 1.5 |
| Front material |
PPS |
| Sensing range |
> 15…40 mm |
| Differential travel |
1…15 % of Sr |
| Residual current |
0.8 mA open state |
| Status LED |
Output state: 1 LED (yellow) |
| Switching frequency |
<= 25 Hz AC ,<= 300 Hz DC |
| Voltage drop |
<5.5 V (closed) |
| Delay first up |
30 MILLISECOND |
| Delay response |
0.5 MILLISECOND |
| Marking |
CE |
| Delay recovery |
2 MILLISECOND |
| Product certifications |
CSACCCUL |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.5 CENTIMETER |
| Package 1 width |
6.5 CENTIMETER |
| Package 1 length |
9.5 CENTIMETER |
| Package 1 weight |
90 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
11 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.187 KILOGRAM |
