XS230SAMAL2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

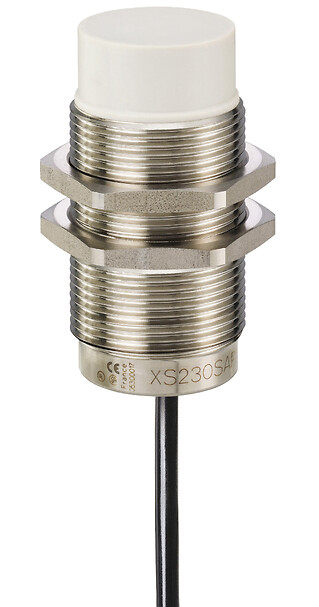

Inductive proximity sensors XS, inductive sensor XS2 M30, L63mm, stainless, Sn22mm, 24…240VAC/DC, L2m
جزئیات محصول
| وزن | 182 گرم |
|---|---|
| ابعاد | 20.5 × 8 × 3.5 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Device application | Food and beverage |
| Sensor design | Cylindrical M30 |
| Size | 63 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acc | Non flush mountable |
| Material | Stainless steel |
| Electrical connection | Cable |
| [Us] rated supply voltage | 24…240 V AC 50/60 Hz, 24…240 V DC |
| Output circuit type | AC/DC |
| Switching capacity in mA | 5…200 mA DC, 5…300 mA AC |
| IP degree of protection | IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050 |
| Enclosure material | Stainless steel 316 L |
| Detection face | Frontal |
| Thread type | M30 x 1.5 |
| Front material | PPS |
| Sensing range | > 15…40 mm |
| Differential travel | 1…15 % of Sr |
| Cable composition | 2 x 0.34 mm² |
| Residual current | 0.8 mA open state |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 25 Hz AC, <= 300 Hz DC |
| Voltage drop | <5.5 V (closed) |
| Delay first up | 30 MILLISECOND |
| Delay response | 0.5 MILLISECOND |
| Marking | CE |
| Delay recovery | 2 MILLISECOND |
| Product certifications | CSACCCUL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Package 1 height | 3.5 CENTIMETER |
| Package 1 width | 8 CENTIMETER |
| Package 1 length | 20.5 CENTIMETER |
| Package 1 weight | 182 GRAM |
| Unit type of package 2 | S01 |
| Number of units in package | 11 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.2 KILOGRAM |
