XS4P12AB120
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

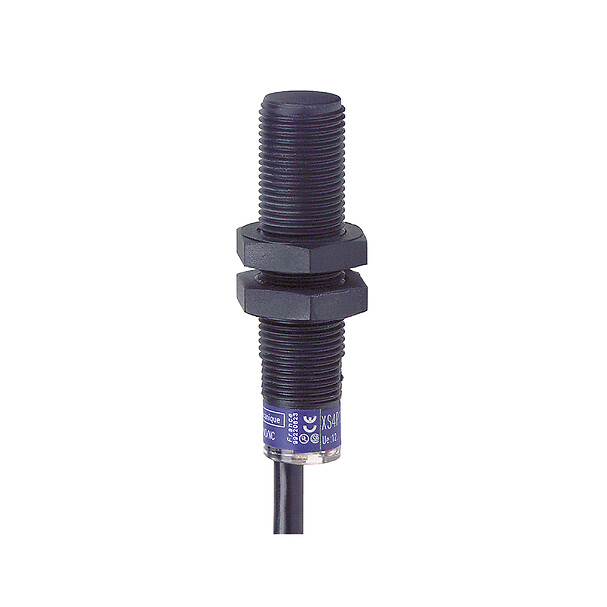

Inductive proximity sensors XS, inductive sensor XS4 M12, L50mm, PBT, Sn4mm, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 72 گرم |
|---|---|
| ابعاد | 11.9 × 11.9 × 2.6 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Electrical circuit type |
Analog output |
| Sensor name |
XS4 |
| Sensor design |
Cylindrical M12 |
| Size |
54 mm |
| Body type |
Fixed |
| Type of output signal |
Analogue |
| Wiring technique |
2-wire |
| Discrete output function |
1 NC |
| Detector flush mounting acc |
Non flush mountable |
| Material |
Plastic |
| Analogue output range |
4…20 mA |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
12…24 V DC |
| Output circuit type |
DC |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Enclosure material |
PBT |
| Detection face |
Frontal |
| Thread type |
M12 x 1 |
| Front material |
PBT |
| Sensing range |
> 2.5…4 mm |
| Linearity error |
+/- 2 mA |
| Repeat accuracy |
<= 3% of Sr |
| Cable composition |
3 x 0.34 mm² |
| Wire insulation material |
PVC |
| Switching frequency |
<= 1500 Hz |
| Output current drift |
10 PERCENTAGE |
| Current consumption |
4 mA no-load |
| Marking |
CE |
| Product certifications |
CSAUL |
| Unit type of package 1 |
PCE |
| Package 1 height |
2.6 CENTIMETER |
| Package 1 width |
11.9 CENTIMETER |
| Package 1 length |
11.9 CENTIMETER |
| Package 1 weight |
72 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
22 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.959 KILOGRAM |
