XS4P12KP340
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

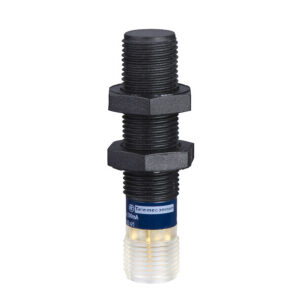

Inductive proximity sensors XS, inductive sensor XS4 M12, L50mm, PPS, Sn4mm, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 72 گرم |
|---|---|
| ابعاد | 9.6 × 13 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS4 |
| Sensor design |
Cylindrical M12 |
| Size |
50 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
4-wire |
| Discrete output function |
1 NO or 1 NC programmable |
| Detector flush mounting acc |
Non flush mountable |
| Discrete output type |
PNP and NPN |
| Material |
Plastic |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Output circuit type |
DC |
| Switching capacity in mA |
<= 200 mA with overload and short-circuit protection |
| IP degree of protection |
IP68 double insulation conforming to IEC 60529 |
| Enclosure material |
PPS |
| Detection face |
Frontal |
| Thread type |
M12 x 1 |
| Front material |
PPS |
| Sensing range |
> 2.5…4 mm |
| Differential travel |
1…15 % of Sr |
| Cable composition |
4 x 0.34 mm² |
| Status LED |
Output state: 1 LED (yellow) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 5000 Hz |
| Voltage drop |
<2.6 V (closed) |
| Current consumption |
0…10 mA no-load |
| Delay first up |
5 MILLISECOND |
| Delay response |
0.1 MILLISECOND |
| Marking |
CE |
| Delay recovery |
0.1 MILLISECOND |
| Product certifications |
CSAUL |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
13 CENTIMETER |
| Package 1 length |
9.6 CENTIMETER |
| Package 1 weight |
72 GRAM |
| Unit type of package 2 |
S03 |
| Number of units in package |
44 |
| Package 2 height |
30 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
3.661 KILOGRAM |
