قیمت محصول
توضیحات

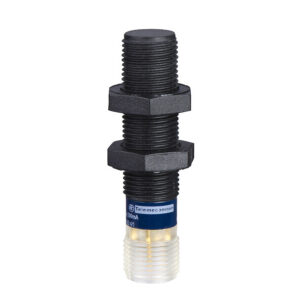

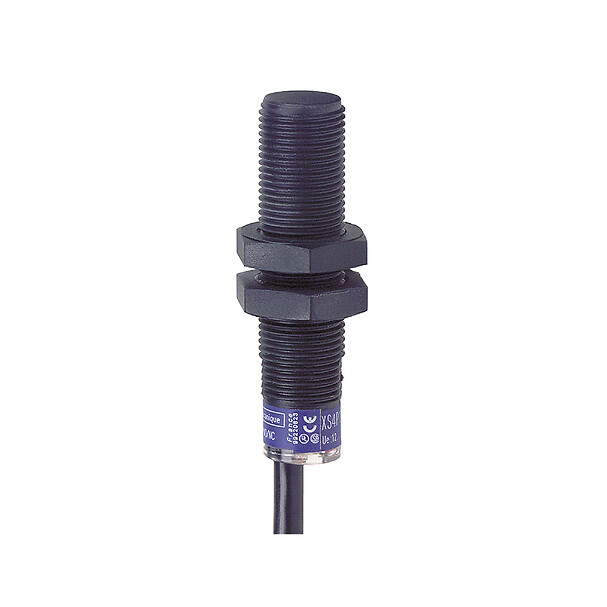

Inductive sensor XS4 M12, L52mm, PPS, Sn4mm, 24…240VAC/DC, cable 2 m
جزئیات محصول
| وزن | 62 گرم |
|---|---|
| ابعاد | 9.6 × 13 × 4.2 سانتیمتر |
| Size | 52 mm |
| Electrical connection | Cable |
| [Us] rated supply voltage | 24…240 V AC/DC 50/60 Hz |
| Switching capacity in mA | 5…200 mA AC/DC |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
| Front material | PPS |
| Residual current | 0.6 mA open state |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | <= 25 Hz AC, <= 3000 Hz DC |
| Voltage drop | <5.5 V (closed) |
| Marking | CE |
| Product certifications | CSAULEcolab |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Package 1 height | 4.2 CENTIMETER |
| Package 1 width | 13 CENTIMETER |
| Package 1 length | 9.6 CENTIMETER |
| Package 1 weight | 62 GRAM |
| Unit type of package 2 | S03 |
| Number of units in package | 44 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 3.223 KILOGRAM |
