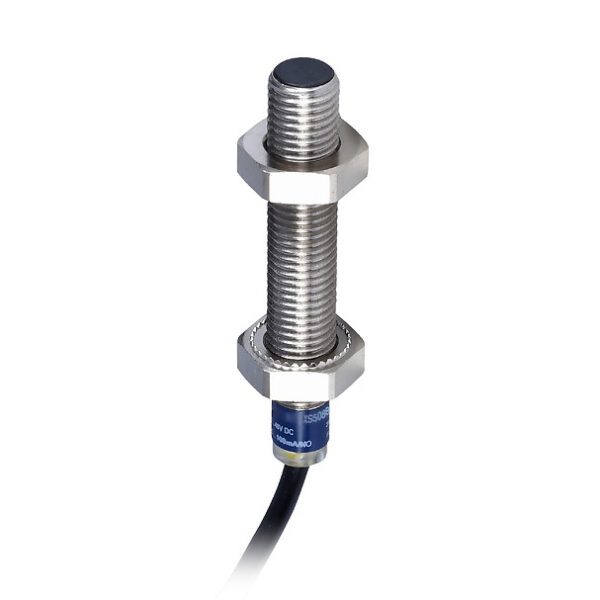

Inductive proximity sensors XS, inductive sensor XS5 M8, L51mm, stainless, Sn1.5 mm, 12…48 VDC, cable 2 m
جزئیات محصول
| وزن | 60 گرم |
|---|---|
| ابعاد | 13.2 × 9.7 × 4.2 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS5 |
| Device application | Not applicable |
| Sensor design | Cylindrical M8 |
| Size | 51 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acc | Flush mountable |
| Material | Stainless steel |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12…48 V DC |
| Output circuit type | DC |
| Switching capacity in mA | 1.5…100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Enclosure material | Stainless steel 303 |
| Detection face | Frontal |
| Thread type | M8 x 1 |
| Front material | PPS |
| Sensing range | > 0…2.5 mm |
| Differential travel | 1…15 % of Sr |
| Cable composition | 2 x 0.11 mm² |
| Residual current | 0.5 mA open state |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 4000 Hz |
| Voltage drop | <4 V (closed) |
| Delay first up | 10 MILLISECOND |
| Delay response | 0.2 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.2 MILLISECOND |
| Product certifications | CSACCCUL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 4.2 CENTIMETER |
| Package 1 width | 9.7 CENTIMETER |
| Package 1 length | 13.2 CENTIMETER |
| Package 1 weight | 0.06 KILOGRAM |
