XS518B1MBU20
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

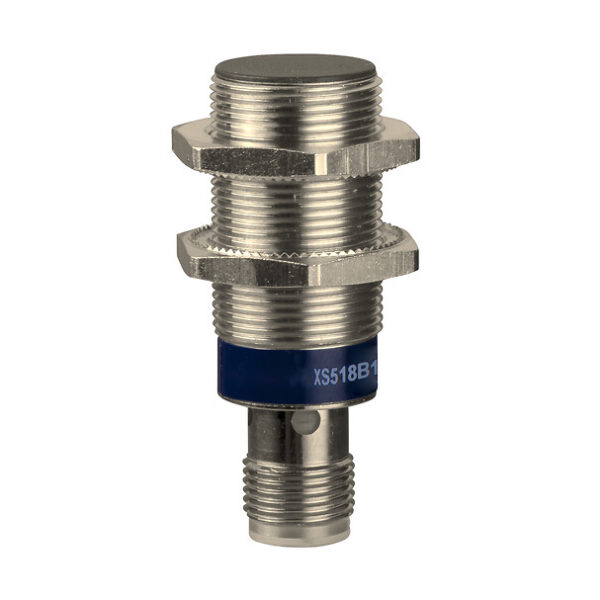

Inductive proximity sensors XS, inductive sensor XS5 M18, L73mm, brass, Sn5mm, 24…240VAC/DC, 1/2″
جزئیات محصول
| وزن | 60 گرم |
|---|---|
| ابعاد | 9.4 × 6.4 × 4.1 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS5 |
| Device application |
Not applicable |
| Sensor design |
Cylindrical M18 |
| Size |
73 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NC |
| Detector flush mounting acc |
Flush mountable |
| Material |
Metal |
| Electrical connection |
3 pins ,Male connector 1/2"20 UNF |
| [Us] rated supply voltage |
24…240 V AC/DC with reverse polarity protection |
| Output circuit type |
AC/DC |
| Switching capacity in mA |
5…200 mA DC ,5…300 mA AC |
| IP degree of protection |
IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Enclosure material |
Nickel plated brass |
| Detection face |
Frontal |
| Thread type |
M18 x 1 |
| Front material |
PPS |
| Sensing range |
> 4…8 mm |
| Differential travel |
1…15 % of Sr |
| Residual current |
0.8 mA open state |
| Status LED |
Output state: 1 LED (yellow) |
| Switching frequency |
<= 1000 Hz DC ,<= 25 Hz AC |
| Voltage drop |
<5.5 V (closed) |
| Delay first up |
25 MILLISECOND |
| Delay response |
0.5 MILLISECOND |
| Marking |
CE |
| Delay recovery |
0.5 MILLISECOND |
| Product certifications |
CSAUL |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
4.1 CENTIMETER |
| Package 1 width |
6.4 CENTIMETER |
| Package 1 length |
9.4 CENTIMETER |
| Package 1 weight |
60 GRAM |
