XS518B1NAL5
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

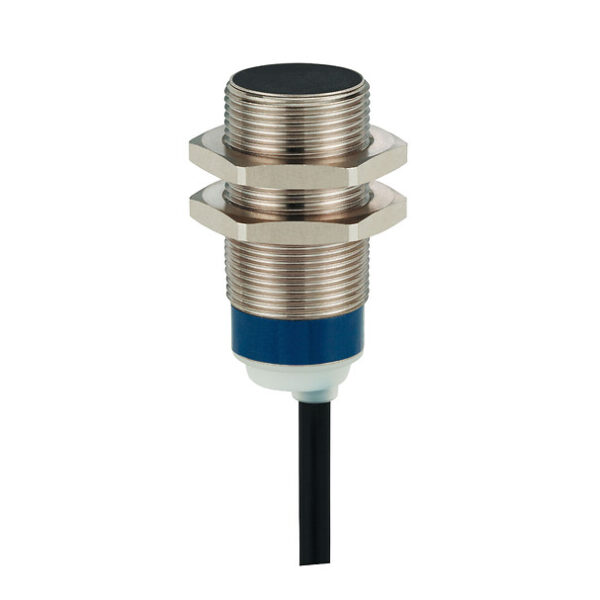

Inductive proximity sensors XS, inductive sensor XS5 M18, L39mm, brass, Sn5mm, 12…24 VDC, cable 5 m
جزئیات محصول
| وزن | 197 گرم |
|---|---|
| ابعاد | 13.2 × 9.6 × 6.7 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS5 |
| Device application | Not applicable |
| Sensor design | Cylindrical M18 |
| Size | 39 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acc | Flush mountable |
| Discrete output type | NPN |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12…24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050 |
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M18 x 1 |
| Front material | PPS |
| Sensing range | > 4…8 mm |
| Differential travel | 1…15 % of Sr |
| Cable composition | 3 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 2000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10 MILLISECOND |
| Delay response | 0.15 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.35 MILLISECOND |
| Product certifications | CSAUL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 6.7 CENTIMETER |
| Package 1 width | 9.6 CENTIMETER |
| Package 1 length | 13.2 CENTIMETER |
| Package 1 weight | 197 GRAM |
