وزن	336 گرم
ابعاد	13.2 × 9.6 × 6.8 سانتیمتر
Range of product	Telemecanique Inductive proximity sensors XS
Series name	General purpose
Sensor type	Inductive proximity sensor
Sensor name	XS5
Sensor design	Cylindrical M18
Size	62 mm
Body type	Fixed
Type of output signal	Discrete
Wiring technique	3-wire
Discrete output function	1 NO
Detector flush mounting acc	Flush mountable
Discrete output type	PNP
Material	Metal
Electrical connection	Cable
[Us] rated supply voltage	12…48 V DC with reverse polarity protection
Output circuit type	DC
Switching capacity in mA	<= 200 mA DC with overload and short-circuit protection
IP degree of protection	IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Enclosure material	Nickel plated brass
Detection face	Frontal
Thread type	M18 x 1
Front material	PPS
Sensing range	> 4…8 mm
Differential travel	1…15 % of Sr
Cable composition	3 x 0.34 mm²
Status LED	Output state: 1 LED (yellow)
Wire insulation material	PVC
Switching frequency	<= 2000 Hz
Voltage drop	<2 V (closed)
Current consumption	<= 10 mA no-load
Delay first up	10 MILLISECOND
Delay response	0.15 MILLISECOND
Marking	CE
Delay recovery	0.35 MILLISECOND
Product certifications	CSAUL
Vibration resistance	25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package	1
Package 1 height	6.8 CENTIMETER
Package 1 width	9.6 CENTIMETER
Package 1 length	13.2 CENTIMETER
Package 1 weight	336 GRAM

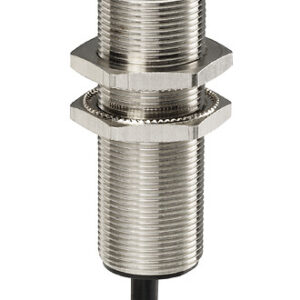

XS518BLPAL10
