XS530B1DAM12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

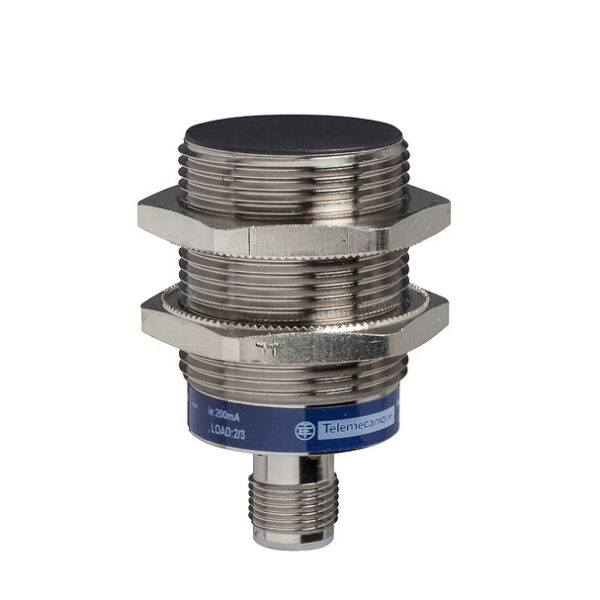

Inductive proximity sensors XS, inductive sensor XS5 M30, L74mm, brass, Sn10mm, 12…48 VDC, M12
جزئیات محصول
| وزن | 132 گرم |
|---|---|
| ابعاد | 15.1 × 6.5 × 3.4 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS5 |
| Device application | Not applicable |
| Sensor design | Cylindrical M30 |
| Size | 62 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acc | Flush mountable |
| Material | Metal |
| Electrical connection | 4 pins, Male connector M12 |
| [Us] rated supply voltage | 12…48 V DC |
| Output circuit type | DC |
| Switching capacity in mA | 1.5…100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529, IP69K conforming to DIN 40050 |
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M30 x 1.5 |
| Front material | PPS |
| Sensing range | 8…15 mm |
| Differential travel | 1…15 % of Sr |
| Residual current | 0.5 mA open state |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | <= 2000 Hz |
| Voltage drop | <4 V (closed) |
| Delay first up | 10 MILLISECOND |
| Delay response | 0.3 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.3 MILLISECOND |
| Product certifications | CSACCCUL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Package 1 height | 3.4 CENTIMETER |
| Package 1 width | 6.5 CENTIMETER |
| Package 1 length | 15.1 CENTIMETER |
| Package 1 weight | 132 GRAM |
| Unit type of package 2 | S02 |
| Number of units in package | 44 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 6.064 KILOGRAM |
