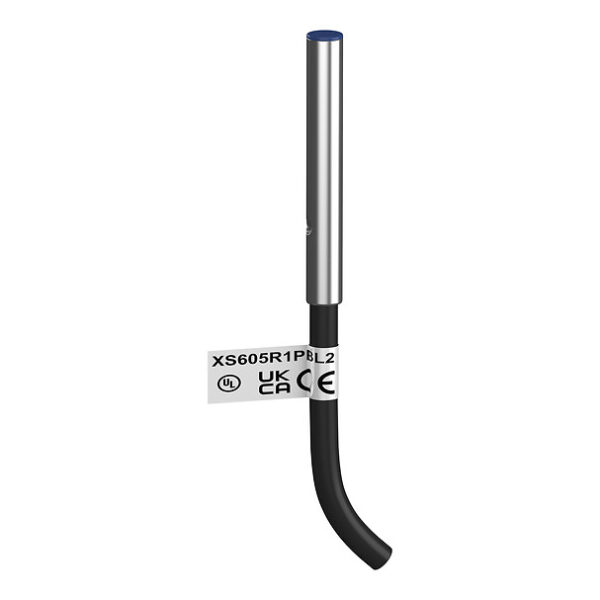

Miniature inductive sensor, D4 plain, L31mm, stainless, Sn1.5mm, cable 2m
جزئیات محصول
| Range of product |
Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name |
Miniature |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS6 |
| Sensor design |
Cylindrical Ø 4 mm plain |
| Size |
30.2 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NC |
| Detector flush mounting acc |
Quasi flush mountable |
| Discrete output type |
PNP |
| Material |
Stainless steel |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Output circuit type |
DC |
| Switching capacity in mA |
<= 100 mA DC with overload and short-circuit protection |
| IP degree of protection |
IP67 |
| Enclosure material |
Stainless steel 303 |
| Detection face |
Frontal |
| Front material |
PBT |
| Sensing range |
> 0…2.5 mm |
| Differential travel |
1…20 % of Sr |
| Cable composition |
3 x 0.14 mm² |
| Status LED |
Output state: 1 LED (yellow) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 5000 Hz |
| Voltage drop |
<1.5 V |
| Current consumption |
<= 10 mA no-load |
| Delay first up |
50 MILLISECOND |
| Marking |
CEUKCA |
| Product certifications |
UL |
