وزن	29 گرم
ابعاد	8 × 4 × 2 سانتیمتر
Range of product	Telemecanique Inductive proximity sensors XS
Series name	General purpose
Sensor type	Inductive proximity sensor
Sensor name	XS6
Sensor design	Cylindrical M12
Size	61 mm
Body type	Fixed
Type of output signal	Discrete
Wiring technique	2-wire
Discrete output function	1 NO
Detector flush mounting acc	Flush mountable
Material	Metal
Electrical connection	4 pins, Male connector M12
[Us] rated supply voltage	12…48 V DC with reverse polarity protection
Output circuit type	DC
Switching capacity in mA	<= 100 mA DC with overload and short-circuit protection
IP degree of protection	IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Enclosure material	Nickel plated brass
Detection face	Frontal
Thread type	M12 x 1
Front material	PPS
Sensing range	> 2.5…4 mm
Differential travel	1…15 % of Sr
Status LED	Output state: 1 LED (yellow)
Switching frequency	<= 2000 Hz DC
Voltage drop	<4 V (closed)
Delay first up	10 MILLISECOND
Delay response	0.3 MILLISECOND
Marking	CE
Delay recovery	0.3 MILLISECOND
Product certifications	CSAUL
Vibration resistance	25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1	PCE
Package 1 height	2 CENTIMETER
Package 1 width	4 CENTIMETER
Package 1 length	8 CENTIMETER
Package 1 weight	29 GRAM
Unit type of package 2	S01
Number of units in package	22
Package 2 height	15 CENTIMETER
Package 2 width	15 CENTIMETER
Package 2 length	40 CENTIMETER
Package 2 weight	665 GRAM

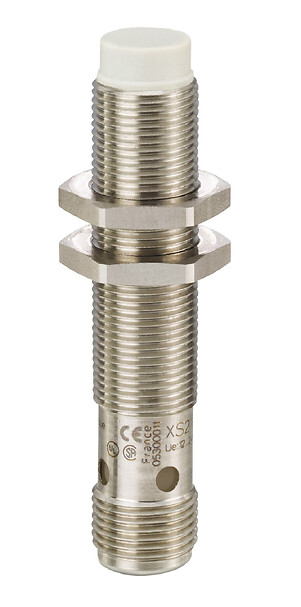

XS612B1DAM12
