XS612B1PBL10EX
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

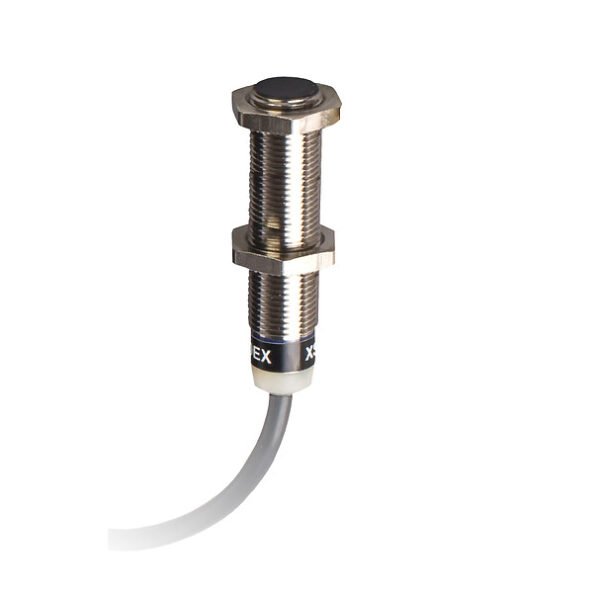

Inductive proximity sensors XS for hazardous area dust, M12, Sn4mm, 12…48 VDC, NC, cable 10 m
جزئیات محصول
| وزن | 331 گرم |
|---|---|
| ابعاد | 15 × 8 × 6 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS6 |
| Device application | ATEX dust |
| Sensor design | Cylindrical M12 |
| Size | 12 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NC |
| Detector flush mounting acc | Flush mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Cable |
| Output circuit type | DC |
| [Us] rated supply voltage | 12…48 V DC with reverse polarity protection |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP68 conforming to IEC 60529, IP69K |
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M12 x 1 |
| Front material | PPS |
| Sensing range | > 2.5…4 mm |
| Differential travel | 1…15 % of Sr |
| Cable composition | 3 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 2500 Hz |
| Voltage drop | <2 V (closed state) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10 MILLISECOND |
| Delay response | 0.2 MILLISECOND |
| Marking | II2 D-Ex tb IIIC T90°C Db IP68 |
| Delay recovery | 0.2 MILLISECOND |
| Product certifications | IEC-Ex INE 17.0006INERIS 04ATEX0022 |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 60079-31IEC 60079-0 |
| Environmental characteristi | Hazardous location |
| Directives | 2014/34/EU – ATEX directive |
| Dust zone | Zone 21 – 22 |
| Unit type of package 1 | PCE |
| Package 1 height | 6 CENTIMETER |
| Package 1 width | 8 CENTIMETER |
| Package 1 length | 15 CENTIMETER |
| Package 1 weight | 331 GRAM |
| Unit type of package 2 | S02 |
| Number of units in package | 10 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 3.5 KILOGRAM |
