XS618B1MAL01C
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

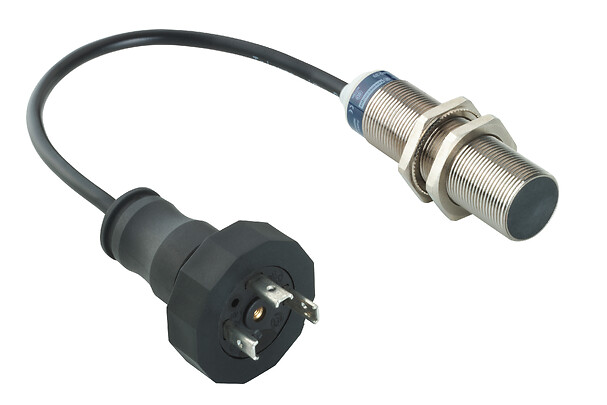

Inductive proximity sensors XS, inductive sensor XS6 M18, L62mm, brass, Sn8mm, 24…240VAC/DC, DIN 0.15 m
جزئیات محصول
| وزن | 106 گرم |
|---|---|
| ابعاد | 13.2 × 9.7 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS6 |
| Sensor design |
Cylindrical M18 |
| Size |
62 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO |
| Detector flush mounting acc |
Flush mountable |
| Material |
Metal |
| Electrical connection |
Remote male connector DIN 43650A |
| [Us] rated supply voltage |
24…240 V AC/DC 50/60 Hz |
| Output circuit type |
AC/DC |
| Switching capacity in mA |
5…200 mA DC ,5…300 mA AC |
| IP degree of protection |
IP68 double insulation conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Enclosure material |
Nickel plated brass |
| Detection face |
Frontal |
| Thread type |
M18 x 1 |
| Front material |
PPS |
| Sensing range |
> 4…8 mm |
| Differential travel |
1…15 % of Sr |
| Cable composition |
2 x 0.34 mm² |
| Residual current |
0.8 mA open state |
| Status LED |
Output state: 1 LED (yellow) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 1000 Hz DC ,<= 25 Hz AC |
| Voltage drop |
<5.5 V |
| Delay first up |
25 MILLISECOND |
| Delay response |
0.5 MILLISECOND |
| Marking |
CE |
| Delay recovery |
0.5 MILLISECOND |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
9.7 CENTIMETER |
| Package 1 length |
13.2 CENTIMETER |
| Package 1 weight |
106 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
10 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.27 KILOGRAM |
