XS618B1MBL2TF
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

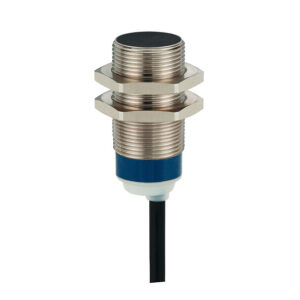

Inductive proximity sensors XS, inductive sensor XS6 M18, L62mm, brass, Sn8mm, 24…240VAC/DC, cable 2 m
جزئیات محصول
| وزن | 120 گرم |
|---|---|
| ابعاد | 4.2 × 13.2 × 9.7 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS6 |
| Sensor design | Cylindrical M18 |
| Size | 62 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NC |
| Detector flush mounting acc | Flush mountable |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 24…240 V AC/DC 50/60 Hz |
| Output circuit type | AC/DC |
| Switching capacity in mA | 5…200 mA DC, 5…300 mA AC |
| IP degree of protection | IP65 conforming to IEC 60529, IP68 conforming to IEC 60529 |
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M18 x 1 |
| Front material | PPS |
| Sensing range | > 4…8 mm |
| Differential travel | 1…15 % of Sr |
| Cable composition | 2 x 0.34 mm² |
| Residual current | 0.8 mA open state |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 1000 Hz DC, <= 25 Hz AC |
| Voltage drop | <5.5 V (closed) |
| Delay first up | 25 MILLISECOND |
| Delay response | 0.5 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.5 MILLISECOND |
| Product certifications | CSAUL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 9.7 CENTIMETER |
| Package 1 width | 13.2 CENTIMETER |
| Package 1 length | 4.2 CENTIMETER |
| Package 1 weight | 120 GRAM |
