XS618B1PBL10EX
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

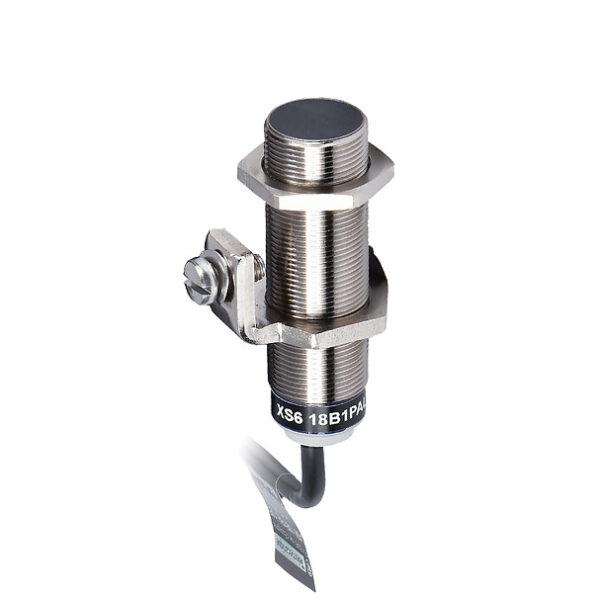

Inductive proximity sensors XS for hazardous area dust, M18, Sn8mm, 12…48 VDC, NC, cable 10 m
جزئیات محصول
| وزن | 352 گرم |
|---|---|
| ابعاد | 16 × 8 × 5 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS6 |
| Device application |
ATEX dust |
| Sensor design |
Cylindrical M18 |
| Size |
18 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NC |
| Detector flush mounting acc |
Flush mountable |
| Discrete output type |
PNP |
| Material |
Metal |
| Electrical connection |
Cable |
| Output circuit type |
DC |
| [Us] rated supply voltage |
12…48 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 200 mA with overload and short-circuit protection |
| IP degree of protection |
IP68 conforming to IEC 60529 ,IP69K |
| Enclosure material |
Nickel plated brass |
| Detection face |
Frontal |
| Thread type |
M18 x 1 |
| Front material |
PPS |
| Sensing range |
> 4…8 mm |
| Differential travel |
1…15 % of Sr |
| Cable composition |
3 x 0.34 mm² |
| Status LED |
Output state: 1 LED (yellow) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 1000 Hz |
| Voltage drop |
<2 V (closed state) |
| Current consumption |
<= 10 mA no-load |
| Delay first up |
10 MILLISECOND |
| Delay response |
0.3 MILLISECOND |
| Marking |
II2 D-Ex tb IIIC T90°C Db IP68 |
| Delay recovery |
0.7 MILLISECOND |
| Product certifications |
IEC-Ex INE 17.0006INERIS 04ATEX0022 |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards |
IEC 60079-31IEC 60079-0 |
| Environmental characteristi |
Hazardous location |
| Directives |
2014/34/EU – ATEX directive |
