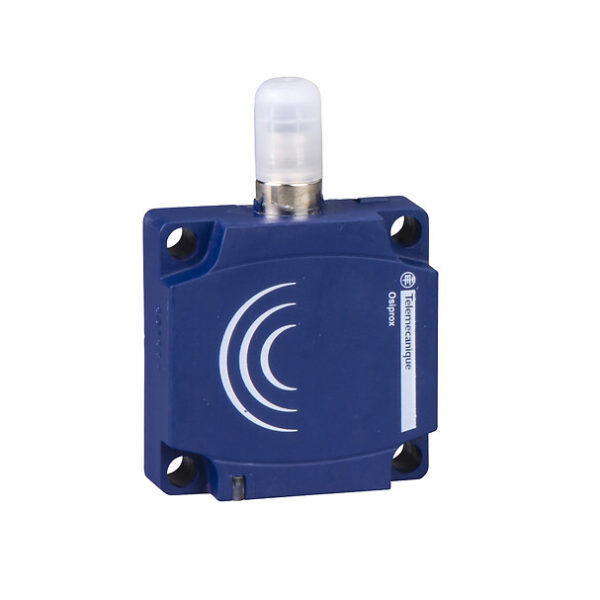

Inductive proximity sensors XS, inductive sensor XS7 40x40x15, PBT, Sn15mm, 12…24 VDC, M8
جزئیات محصول
| وزن | 65 گرم |
|---|---|
| ابعاد | 6.6 × 9.5 × 4.2 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Not applicable |
| Sensor name | XS7 |
| Sensor design | Flat form 40 x 40 x 15 |
| Size | 15 mm |
| Body type | Fixed |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NC |
| Electrical connection | 3 pins, Male connector M8 |
| Discrete output type | NPN |
| [Us] rated supply voltage | 12…24 V DC with reverse polarity protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Switching capacity in mA | <= 100 mA DC with overload and short-circuit protection |
| Detector flush mounting acc | Flush mountable |
| Material | Plastic |
| Output circuit type | DC |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1…15 % of Sr |
| Sensing range | 8…15 mm |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | <= 1000 Hz |
| Current consumption | <= 10 mA no-load |
| Voltage drop | <2 V (closed) |
| Delay first up | 10 MILLISECOND |
