XS7D1A3CAM12DIN
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

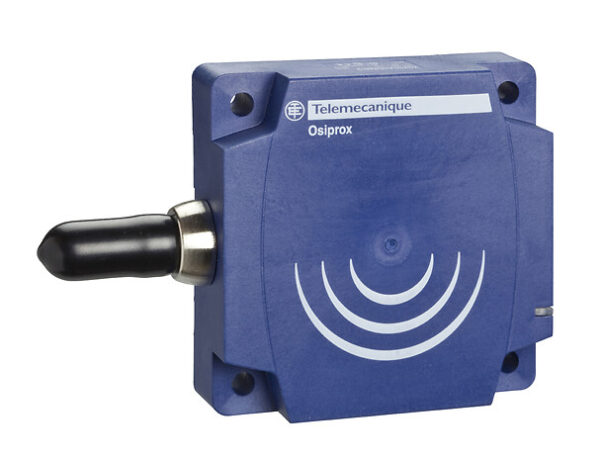

Inductive proximity sensors XS, inductive sensor XS7 80x80x40, PBT, Sn50mm, 10…48 VDC, M12
جزئیات محصول
| وزن | 345 گرم |
|---|---|
| ابعاد | 13.2 × 9.6 × 4.3 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS7 |
| Sensor design |
Flat form 80 x 80 x 40 |
| Size |
40 mm |
| Body type |
Fixed clippable onto DIN rail |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO |
| Electrical connection |
4 pins ,Male connector M12 |
| [Us] rated supply voltage |
10…48 V DC with reverse polarity protection |
| IP degree of protection |
IP67 double insulation conforming to IEC 60529 |
| Switching capacity in mA |
1.5…300 mA with overload and short-circuit protection |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
Frontal |
| Front material |
PBT |
| Repeat accuracy |
<= 3% of Sr |
| Differential travel |
1…15 % of Sr |
| Sensing range |
> 40…60 mm |
| Status LED |
Output state: 1 LED (yellow) |
| Switching frequency |
<= 100 Hz |
| Residual current |
0.5 mA open state |
| Voltage drop |
<4.5 V (closed) |
| Delay first up |
10 MILLISECOND |
