XS7F1A1NAL2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

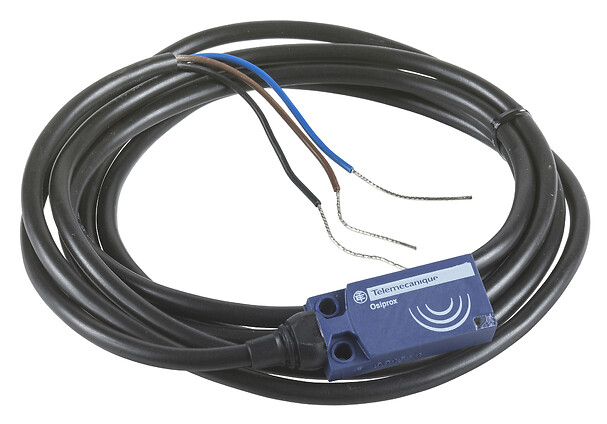

Inductive proximity sensors XS, inductive sensor XS7 15x32x8, PBT, Sn5mm, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 78 گرم |
|---|---|
| ابعاد | 13.3 × 9.7 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS7 |
| Sensor design |
Flat form 15 x 32 x 8 |
| Size |
8 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NO |
| Electrical connection |
Cable |
| Discrete output type |
NPN |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| IP degree of protection |
IP68 conforming to IEC 60529 |
| Switching capacity in mA |
<= 100 mA DC with overload and short-circuit protection |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
Frontal |
| Front material |
PBT |
| Differential travel |
1…15 % of Sr |
| Wire insulation material |
PVC |
| Cable composition |
3 x 0.34 mm² |
| Sensing range |
> 4…8 mm |
| Status LED |
Output state: 1 LED (yellow) |
| Switching frequency |
<= 2000 Hz |
| Current consumption |
<= 10 mA no-load |
| Voltage drop |
<2 V (closed) |
| Delay first up |
5 MILLISECOND |
| Marking |
CE |
| Delay response |
0.1 MILLISECOND |
| Delay recovery |
0.1 MILLISECOND |
| Product certifications |
CSAULC-Tick |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
9.7 CENTIMETER |
| Package 1 weight |
78 GRAM |
| Package 1 length |
13.3 CENTIMETER |
| Unit type of package 2 |
S02 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.761 KILOGRAM |
| Unit type of package 3 |
P06 |
| Number of units in package |
256 |
| Package 3 height |
75 CENTIMETER |
| Package 3 width |
40 CENTIMETER |
| Package 3 length |
80 CENTIMETER |
| Package 3 weight |
44.968 KILOGRAM |
