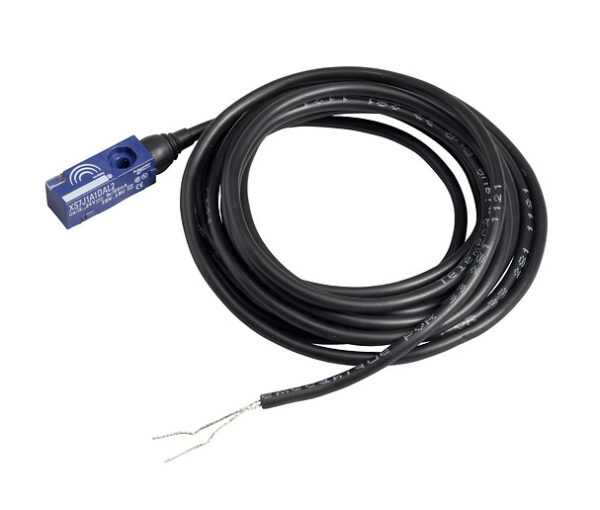

Inductive proximity sensors XS, inductive sensor XS7 8x22x8, PBT, Sn2.5 mm, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 46 گرم |
|---|---|
| ابعاد | 13.2 × 9.5 × 4.2 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Not applicable |
| Sensor name | XS7 |
| Sensor design | Flat form 8 x 22 x 8 |
| Size | 8 mm |
| Body type | Fixed |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12…24 V DC with reverse polarity protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Switching capacity in mA | 1.5…100 mA DC with overload and short-circuit protection |
| Detector flush mounting acc | Flush mountable |
| Material | Plastic |
| Output circuit type | DC |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1…15 % of Sr |
| Wire insulation material | PVC |
| Cable composition | 2 x 0.11 mm² |
| Sensing range | > 0…2.5 mm |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | <= 4000 Hz |
| Residual current | 0.5 mA open state |
| Voltage drop | <4 V (closed) |
