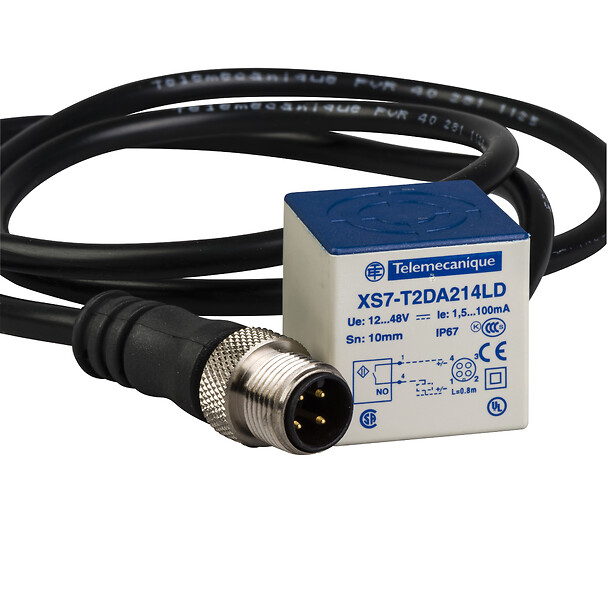

Inductive proximity sensors XS, inductive sensor XS7 26x26x26, plastic, Sn10mm, 12…48 VDC, M12
جزئیات محصول
| وزن | 128 گرم |
|---|---|
| ابعاد | 12.5 × 8 × 5.2 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Product specific applicatio | Not applicable |
| Sensor name | XS7 |
| Sensor design | Cubic form 26 x 26 x 26 |
| Size | 26 mm |
| Body type | Fixed |
| Detector flush mounting acc | Flush mountable |
| Material | Plastic |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Output circuit type | DC |
| Discrete output function | 1 NO |
| Electrical connection | 4 pins, Remote male connector M12 |
| Switching capacity in mA | 1.5…100 mA |
| [Us] rated supply voltage | 12…48 V DC |
| IP degree of protection | IP67 |
| Enclosure material | Plastic |
| Detection face | 5 positions turret head |
| Front material | Plastic |
| Sensing range | 8…15 mm |
| Switching frequency | <= 100 Hz |
| Marking | CE |
| Product certifications | CSACCCUL |
| Unit type of package 2 | S02 |
| Package 1 height | 5.2 CENTIMETER |
| Package 1 width | 8 CENTIMETER |
| Package 2 height | 15 CENTIMETER |
| Package 1 length | 12.5 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 1 weight | 128 GRAM |
| Unit type of package 1 | PCE |
| Package 2 length | 40 CENTIMETER |
| Number of units in package | 1 |
| Package 2 weight | 2.996 KILOGRAM |
