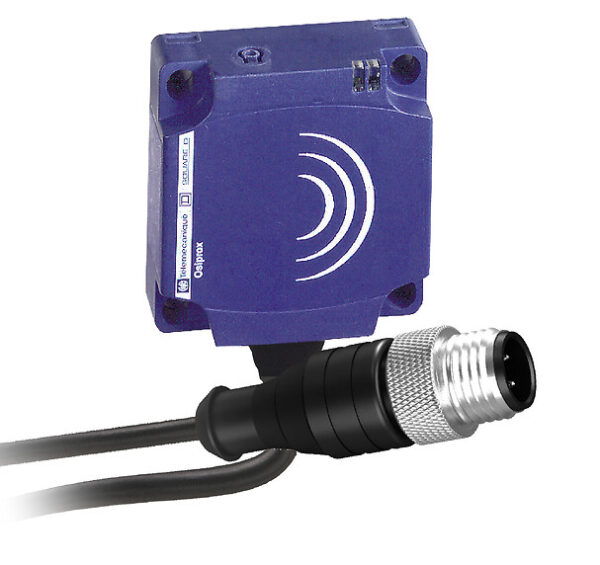

Inductive proximity sensors XS, inductive sensor XS8 40x40x15, PBT, Sn25mm, 24…240VAC/DC, 1/2″ 0.15 m
جزئیات محصول
| وزن | 84 گرم |
|---|---|
| ابعاد | 9.4 × 6.4 × 4.4 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS8 |
| Sensor design |
Flat form 40 x 40 x 15 |
| Size |
15 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NC |
| Electrical connection |
3 pins ,Remote male connector 1/2"20 UNF |
| [Us] rated supply voltage |
24…240 V AC/DC 50/60 Hz |
| IP degree of protection |
IP67 double insulation conforming to IEC 60529 |
| Switching capacity in mA |
5…200 mA DC ,5…300 mA AC |
| Detector flush mounting acc |
Non flush mountable |
| Material |
Plastic |
| Output circuit type |
AC/DC |
| Detection face |
Frontal |
| Front material |
PBT |
| Differential travel |
1…15 % of Sr |
| Wire insulation material |
PVC |
| Sensing range |
> 15…40 mm |
| Switching frequency |
<= 1000 Hz |
| Residual current |
1.5 mA open state |
| Current consumption |
<= 10 mA no-load |
| Voltage drop |
<5.5 V (closed) |
| Delay first up |
10 MILLISECOND |
