XS8C1A1PBL2
شناسه محصول:
TM-IS&CS-ISX-R-XS8C1A1PBL2

ارسال سریع
با پست پیشتاز

پشتیبانی ۲۴ ساعته
و ۷ روز هفته

تضمین کیفیت
و تضمین اصالت

رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

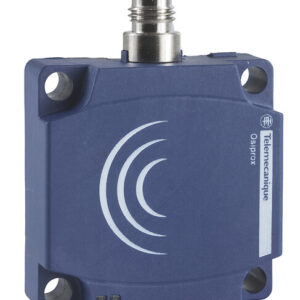

Inductive proximity sensors XS, inductive sensor XS8 40x40x15, PBT, Sn25mm, 12…24 VDC, cable 2 m
جزئیات محصول
وزن | 131 گرم |
---|---|
ابعاد | 13 × 9.8 × 4.2 سانتیمتر |
Range of product |
Telemecanique Inductive proximity sensors XS |
Series name |
General purpose |
Sensor type |
Inductive proximity sensor |
Device application |
Not applicable |
Sensor name |
XS8 |
Sensor design |
Flat form 40 x 40 x 15 |
Size |
15 mm |
Body type |
Fixed |
Enclosure material |
PBT |
Type of output signal |
Discrete |
Wiring technique |
3-wire |
Discrete output function |
1 NC |
Electrical connection |
Cable |
Discrete output type |
PNP |
[Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
IP degree of protection |
IP68 double insulation conforming to IEC 60529 |
Switching capacity in mA |
<= 200 mA DC with overload and short-circuit protection |
Detector flush mounting acc |
Non flush mountable |
Material |
Plastic |
Output circuit type |
DC |
Detection face |
Frontal |
Front material |
PBT |
Differential travel |
1…15 % of Sr |
Wire insulation material |
PVC |
Cable composition |
3 x 0.34 mm² |
Sensing range |
> 15…40 mm |
Switching frequency |
<= 1000 Hz |
Residual current |
1.5 mA open state |
Current consumption |
<= 10 mA no-load |
