XS8C4A1MPN12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

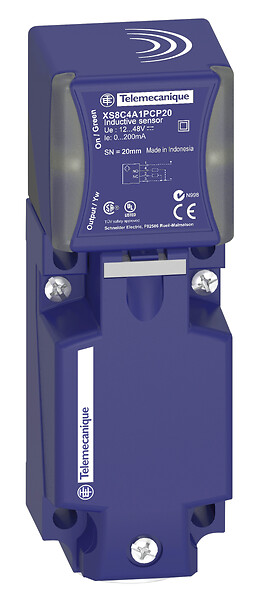

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 24…240VAC/DC, terminals
جزئیات محصول
| وزن | 238 گرم |
|---|---|
| ابعاد | 14.3 × 5 × 5 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS8 |
| Sensor design |
Form 40 x 40 x 117 |
| Size |
117 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
4 x 1.5 mm² ,Screw-clamp terminals |
| [Us] rated supply voltage |
24…240 V AC 50/60 Hz ,24…240 V DC |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Switching capacity in mA |
5…200 mA DC ,5…300 mA AC |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Output circuit type |
AC/DC |
| Detection face |
5 positions turret head |
| Front material |
PBT |
| Repeat accuracy |
<= 3% of Sr |
| Differential travel |
3…15% of Sr |
| Sensing range |
> 15…40 mm |
| Status LED |
Output state: 1 LED (yellow) ,supply on: 1 LED (green) |
| Switching frequency |
<= 25 Hz AC ,<= 50 Hz DC |
| Residual current |
0.6 mA open state 24 V ,1.5 mA open state 120 V |
| Voltage drop |
<5.5 V (closed) |
| Delay first up |
7.5 MILLISECOND |
| Marking |
CE |
| Delay response |
1.2 MILLISECOND |
| Delay recovery |
1.8 MILLISECOND |
| Product certifications |
CSACCCUL |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
5 CENTIMETER |
| Package 1 width |
5 CENTIMETER |
| Package 1 weight |
238 GRAM |
| Package 1 length |
14.3 CENTIMETER |
