XS8C4A1NCG13
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

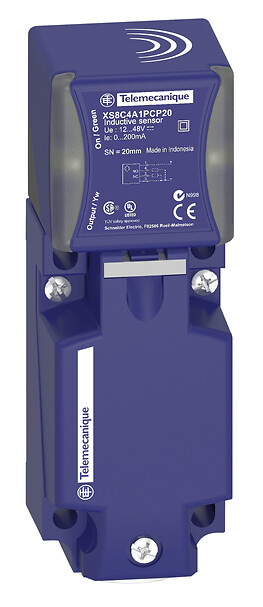

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12…48 VDC, terminals
جزئیات محصول
| وزن | 253 گرم |
|---|---|
| ابعاد | 5 × 5 × 14.5 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Device application |
Mobile equipment |
| Sensor name |
XS8 |
| Sensor design |
Form 40 x 40 x 117 |
| Size |
117 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
4-wire |
| Discrete output function |
1 NO + 1 NC |
| Electrical connection |
4 x 1.5 mm² ,Screw-clamp terminals |
| Discrete output type |
NPN |
| [Us] rated supply voltage |
12…48 V DC with reverse polarity protection |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Switching capacity in mA |
<= 200 mA with overload and short-circuit protection |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
5 positions turret head |
| Front material |
PBT |
| Repeat accuracy |
<= 3% of Sr |
| Differential travel |
3…15% of Sr |
| Sensing range |
> 15…40 mm |
| Status LED |
Output state: 1 LED (yellow) ,supply on: 1 LED (green) |
| Switching frequency |
<= 300 Hz |
| Current consumption |
0…15 mA no-load |
| Voltage drop |
<2 V (closed) |
| Delay first up |
7.5 MILLISECOND |
| Marking |
CE |
| Delay response |
1.2 MILLISECOND |
| Delay recovery |
1.8 MILLISECOND |
| Product certifications |
CSACCCULE2 |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
14.5 CENTIMETER |
| Package 1 width |
5 CENTIMETER |
| Package 1 weight |
253 GRAM |
| Package 1 length |
5 CENTIMETER |
| Unit type of package 2 |
S02 |
| Number of units in package |
14 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
3.879 KILOGRAM |
