XS8C4A1PCP20
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

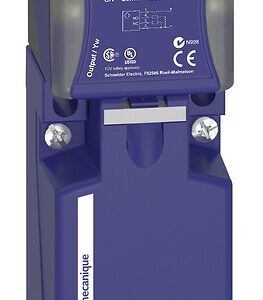

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12…48 VDC, terminals
جزئیات محصول
| وزن | 256 گرم |
|---|---|
| ابعاد | 5 × 5 × 14.5 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Device application |
Mobile equipment |
| Sensor name |
XS8 |
| Sensor design |
Form 40 x 40 x 117 |
| Size |
117 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
4-wire |
| Discrete output function |
1 NO + 1 NC |
| Electrical connection |
4 x 1.5 mm² ,Screw-clamp terminals |
| Discrete output type |
PNP |
| [Us] rated supply voltage |
12…48 V DC with reverse polarity protection |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Switching capacity in mA |
<= 200 mA with overload and short-circuit protection |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
5 positions turret head |
| Front material |
PBT |
| Safety level |
PL = d conforming to ISO 13849-1 ,SIL 2 conforming to IEC 61508 ,SILCL 2 conforming to IEC 62061 |
| Repeat accuracy |
<= 3% of Sr |
| Safety reliability data |
DC = 75 % with appropriate safety controller ,MTTFd = 1546 years ,PFHd = 7.4E-8 1/h ,SFF = 92 % |
| Differential travel |
3…15% of Sr |
| Sensing range |
> 15…40 mm |
| Status LED |
Output state: 1 LED (yellow) ,supply on: 1 LED (green) |
| Switching frequency |
<= 300 Hz |
