قیمت محصول
توضیحات

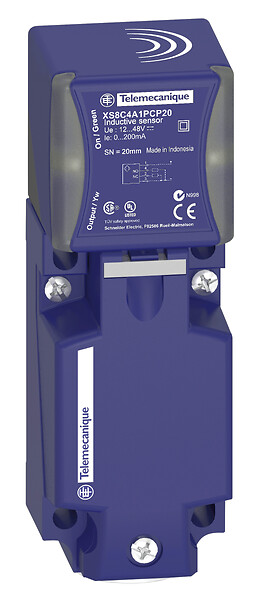

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn40 mm, 12…48 VDC, terminals
جزئیات محصول
| وزن | 262 گرم |
|---|---|
| ابعاد | 5 × 5 × 14.5 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Mobile equipment |
| Sensor name | XS8 |
| Sensor design | Form 40 x 40 x 117 |
| Size | 117 mm |
| Body type | Fixed |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 4-wire |
| Discrete output function | 1 NO + 1 NC |
| Electrical connection | 4 x 1.5 mm², Screw-clamp terminals |
| Discrete output type | NPN |
| [Us] rated supply voltage | 12…48 V DC with reverse polarity protection |
| IP degree of protection | IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050 |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| Detector flush mounting acc | Non flush mountable |
| Material | Plastic |
| Output circuit type | DC |
| Detection face | 5 positions turret head |
| Front material | PBT |
| Repeat accuracy | <= 3% of Sr |
| Differential travel | 3…15% of Sr |
| Sensing range | > 15…40 mm |
| Status LED | Output state: 1 LED (yellow), supply on: 1 LED (green) |
| Switching frequency | <= 200 Hz |
| Current consumption | 0…15 mA no-load |
| Voltage drop | <2 V (closed) |
