XS8D1A1MAL2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

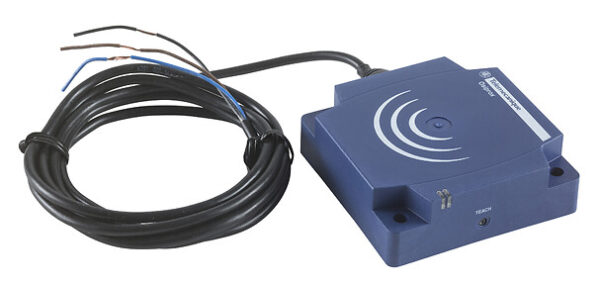

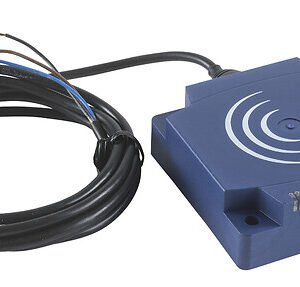

Inductive proximity sensors XS, inductive sensor XS8 80x80x26, PBT, Sn60mm, 24…240VAC/DC, cable 2 m
جزئیات محصول
| وزن | 428 گرم |
|---|---|
| ابعاد | 6.6 × 9.5 × 13 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Not applicable |
| Sensor name | XS8 |
| Sensor design | Flat form 80 x 80 x 26 |
| Size | 26 mm |
| Body type | Fixed |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| [Us] rated supply voltage | 24…240 V AC/DC 50/60 Hz |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
| Switching capacity in mA | 5…200 mA DC, 5…300 mA AC |
| Detector flush mounting acc | Non flush mountable |
| Material | Plastic |
| Output circuit type | AC/DC |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1…15 % of Sr |
| Wire insulation material | PVC |
| Cable composition | 2 x 0.34 mm² |
| Sensing range | > 40…60 mm |
| Switching frequency | <= 150 Hz |
| Residual current | 1.5 mA open state |
| Current consumption | <= 10 mA no-load |
| Voltage drop | <5.5 V (closed) |
