XS8D1A1PBL2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

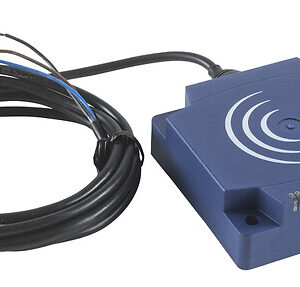

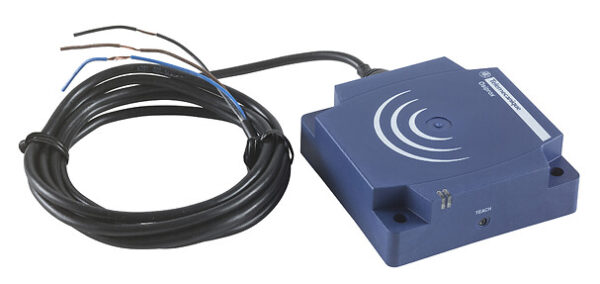

Inductive proximity sensors XS, inductive sensor XS8 80x80x26, PBT, Sn60mm, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 430 گرم |
|---|---|
| ابعاد | 13.2 × 9.8 × 7 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS8 |
| Sensor design |
Flat form 80 x 80 x 26 |
| Size |
26 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NC |
| Electrical connection |
Cable |
| Discrete output type |
PNP |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| IP degree of protection |
IP68 double insulation conforming to IEC 60529 |
| Switching capacity in mA |
<= 200 mA DC with overload and short-circuit protection |
| Detector flush mounting acc |
Non flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
Frontal |
| Front material |
PBT |
| Differential travel |
1…15 % of Sr |
| Wire insulation material |
PVC |
| Cable composition |
3 x 0.34 mm² |
| Sensing range |
> 40…60 mm |
| Switching frequency |
<= 150 Hz |
| Residual current |
1.5 mA open state |
| Current consumption |
<= 10 mA no-load |
